Our single-glazed minimalist Linear family offers versatility in terms of privacy and design, with five different profiles widths from 25 to 64 mm.
The Linear family offers minimal, elegant single glazed systems that are versatile in both acoustic performance and design.
Available in 25mm and 30mm profiles, Linear can achieve up to Rw 41 dB acoustic performance and can be manufactured with a number of glazing options including toughened, laminate, or decorative glass. Framework can be produced in any colour through anodising or powder coating and samples provided.
Capable of being installed with concealed deflection heads and with a number of base track height options available, Linear can be specified to match the designer’s intent to align horizontal lines throughout a space.
Linear 25 & 30 is a fantastic match to Radii’s glass and timber door solutions, both in pivoting and sliding configurations.
Technical Enquiry| | ACOUSTICS | Linear 25: up to Rw 39 dB - Linear 30: up to Rw 41 dB |
 | AVAILABLE FINISHES | PPC powder coated, polished, anodised |
 | BASE DETAIL | from 25mm to 50mm with larger profiles available |
 | COMPATIBILITY | Hogan, Align, Timber |

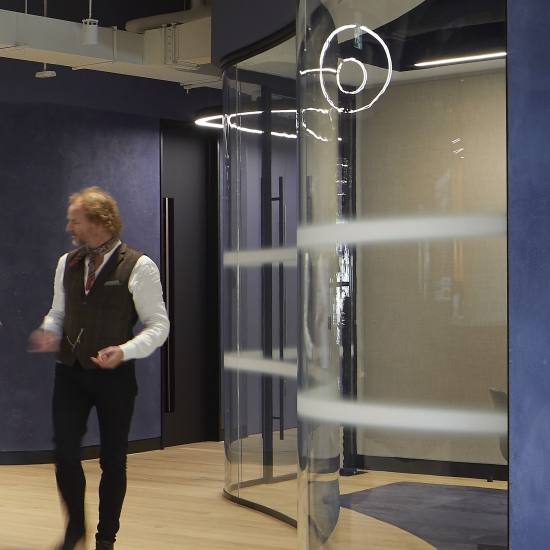

 | CURVE RADIUS | min. 500mm |
 | EPD | Available |
 | FRAME MATERIAL | Aluminium |
| | GLAZING OPTIONS | Single glazed |

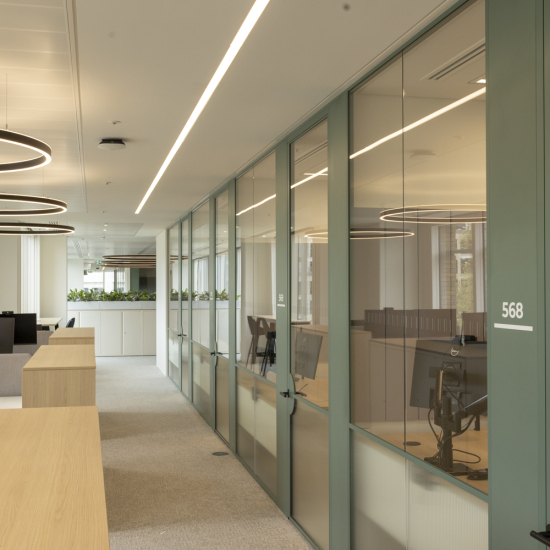

 | HEAD DETAIL | up to ±40mm |
| | MAX HEIGHT | up to 3000mm |
The Linear family offers minimal, elegant single glazed systems that are versatile in both acoustic performance and design.
Capable of being installed with concealed deflection heads and with a number of base track height options available, Linear can be specified to match the designer's intent to align horizontal lines throughout a space.
Furthermore, though typically configured up to heights of 3000mm, extension up to 3650mm is possible though the use of transom bars.
Typically available in 25mm, 30mm and 50mm profiles, Linear can achieve up to 41dB acoustic performance and can be manufactured with a number of glazing options including toughened, laminate, or decorative glass. Framework can be produced in any colour through anodising or powder coating and samples provided.
59mm and 64mm profiles come exclusively with top-hung sliding door installations.
Our single glazed partitioning can incorporate many of our glass and timber door solutions, both in pivoting and sliding configurations.
All of our products are available on the NBS Source platform.
Use the links below to add our range of Linear glazed partitioning systems directly into your specification.
