Linear 25

25mm | Up to Rw 39 dB

View Details

Linear 30

+ -

Linear 30

30mm | Up to Rw 41 dB

View Details

Linear 50 / 50+

+ -

Linear 50 / 50+

50mm | Up to Rw 41 dB

View Details

Linear 59

+ -

Linear 59

59mm | Up to Rw 39 dB

View Details

Linear 64

+ -

Linear 64

64mm | Up to Rw 41 dB

View Details

Linear 50 / 50+.

ACOUSTICS
Linear 50: up to Rw 39 dB - Linear 50+: up to Rw 41 dB

GLAZING OPTIONS
Single glazed

MAX HEIGHT
up to 3600mm

Linear 50 is a single-glazed, all-glass partition system defined by its slim 50 mm profiles, bringing a refined industrial character to interior spaces. For projects with higher acoustic demands, Linear 50 Plus offers an optimised soundproof solution, retaining the same 50 mm profile depth while achieving airborne sound insulation performance of up to Rw 41 dB.

KEY FEATURES & OPTIONS.

1. Available with our 'Rio' feature banding.
2. Can incorporate many of our glass and timber door solutions, both in pivoting and sliding configurations.
3. Deflection heads available up to +/- 25 mm.
4. Environmental Product Declaration (EPD) available on request.

Available with our 'Rio' feature banding.

Can incorporate many of our glass and timber door solutions, both in pivoting and sliding configurations.

Deflection heads available up to +/- 25 mm.

Environmental Product Declaration (EPD) available on request.

01.

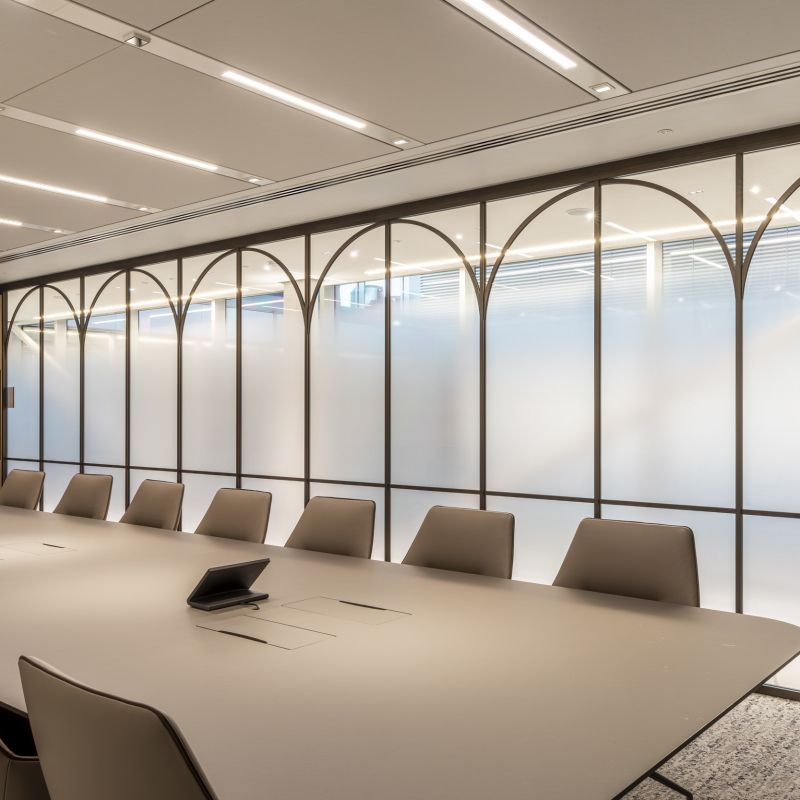

Addleshaw Goddard, 41 Lothbury (R10865) Radii 2025 (LR) © Omer Kanipak (45)

Addleshaw Goddard, 41 Lothbury (R10865) Radii 2025 (LR) © Omer Kanipak (78)

Addleshaw Goddard, 41 Lothbury (R10865) Radii 2025 (LR) © Omer Kanipak (33)

Technical Information.

Linear 50 is a single-glazed, all-glass partition system with slim 50 mm profiles, creating clean, minimalist interiors with uninterrupted sightlines. It features 12.8 mm glass and provides acoustic performance of up to 39 dB, while remaining fully compatible with our glazed pivot doors for a seamless interior finish.

Linear 50+ retains the same slim profile but uses 16.8 mm glass to deliver enhanced acoustic performance of up to 41 dB. It is ideal for spaces where higher sound insulation is required, combining functionality with the same aesthetic as Linear 50.

As with other Linear family systems, both 50 and 50+ can be installed as curved glazing, finished with bespoke options, and enhanced with our popular Rio feature banding, giving architects the flexibility to tailor partitions to suit both functional and design requirements.

Technical Enquiry

	ACOUSTICS	Linear 50: up to Rw 39 dB - Linear 50+: up to Rw 41 dB
	AVAILABLE FINISHES	PPC powder coated, polished, anodised
	BASE DETAIL	from 40mm to 50mm
	COMPATIBILITY	Hogan, Align
	CURVE RADIUS	min. 500mm
	EPD	Available for Linear 50
	FRAME MATERIAL	Aluminium
	GLAZING OPTIONS	Single glazed
	HEAD DETAIL	up to ±40mm
	MAX HEIGHT	up to 3600mm

Downloads

Linear 50 (SG) Glazed Partition System - Radii NBS Specification Template

Unlock Download

Linear 50 & 50+ Single Glazed Partition System - Radii Data Sheet

Unlock Download

Linear 50+ (SG) Glazed Partition System - Radii NBS Specification Template

Unlock Download

Radii Environmental Product Declaration (EPD) - SG Partition

Unlock Download

High-end slimline single glazed partitions

Linear is our family of minimal single glazed partitioning systems, and a popular choice for cellular offices. It can be configured to suit a range of acoustic and design requirements.

Linear is frameless as standard, with the option to add our Rio feature banding.

It can be installed with concealed deflection heads, and a choice of base track heights lets designers keep horizontal lines consistent across a space.

Many of our glass and timber doors can be built into Linear partitions, in pivoting or sliding configurations.
