Loft 54

Loft 54.

Fire Rating
NON FIRE RATED

Acoustics
UP TO 46dB Rw

Maximum Height
UP TO 3000mm

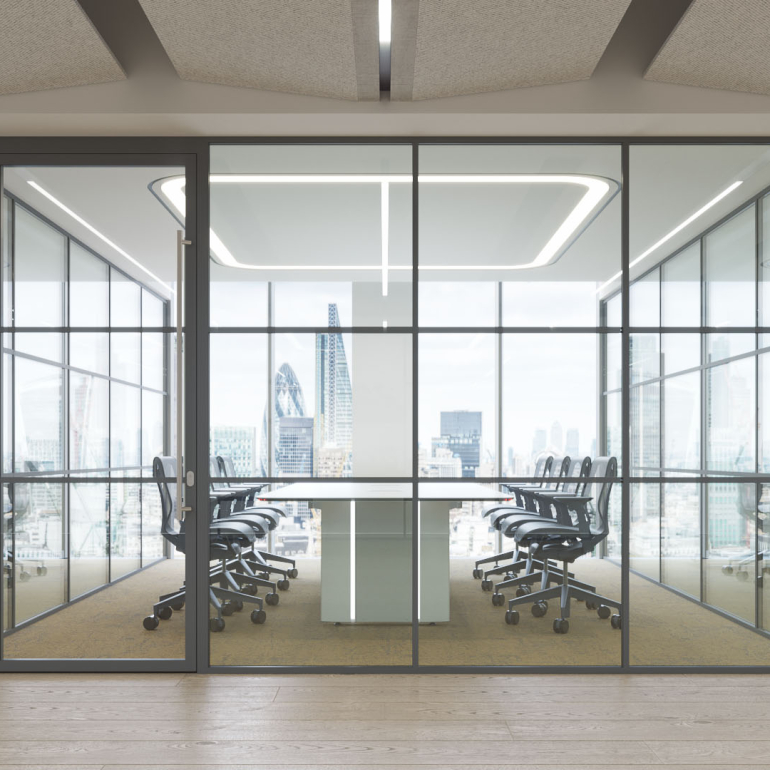

Banded glazed partitioning that delivers performance and aesthetics without compromise. Loft 54 is the ideal foundation for industrial style banded glazing, achieving a notable acoustic performance of up to 46db Rw that is uncompromised by its slender framework.
Choose your original design.

Choose your original design.

Loft 54 allows the specifier to choose from a range of installation methods, depending on the aesthetic they desire. Along with the standard banded glazed partitioning option – where the aluminium trims are applied directly to the glass after installation – a true mullion and transom method is available.

When opting for the mullions and transom method, the structure is created with the glazing inserted only after the frame has been built. This allows for greater flexibility when designing the layout of the visible bands and the materials chosen for each individual section.

This alternative construction method allows for the designer to create any shape they wish, such as a diagonal or checkerboard effect, and furthermore complement Loft 54 with varying materials i.e. different finishes of glass, timber or metal faced boards.

Choose your original design.

Key features & Options.

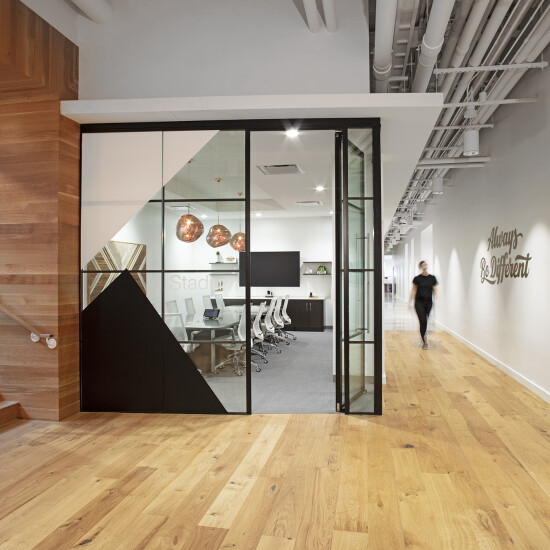

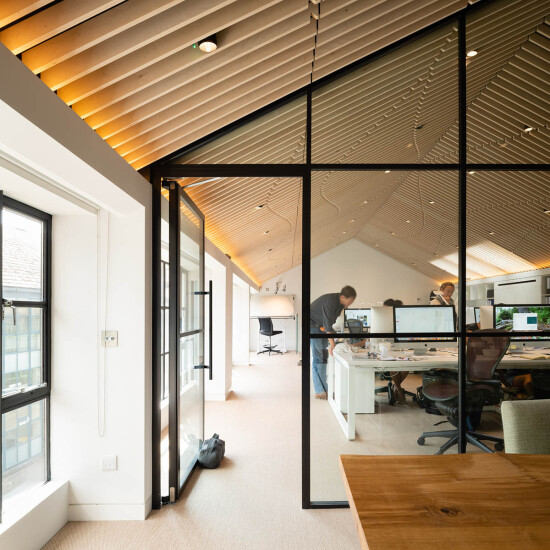

  • 1. Loft 54 shown here with an IsoPro glazed door

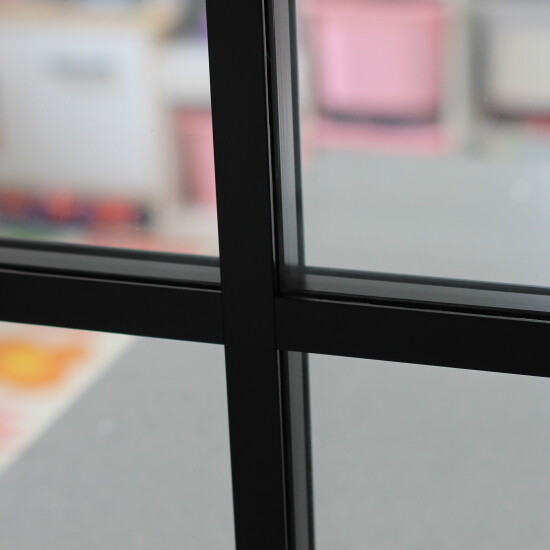

  • 2. Loft 54 features refined details at transom to mullion junctions.
  • 3. Loft 54 has various glazing bar options – shown here is 27mm version.
  • 4. Loft 54 can be polyester powder coated to any RAL colour choice.
01.

Technical Information

FRAMEWORK FOOTPRINT (mm)
54mm
CONFIGURATION OPTIONS Frameless Single Glazed
Frameless Double Glazed


TWO PART DEFLECTION HEAD ±15mm
±25mm
±40mm



GLASS JOINT OPTIONS Linea
Vertex
Nova
Solar
Modular
Silicone






FIRE PERFORMANCE Non-Fire Rated

MAXIMUM HEIGHT Office Use 740N
3500mm
ACOUSTIC PERFORMANCE Multi module (minimum)
Single module (minimum)
Multi module (maximum)
Single module (maximum)
39dB Rw
38dB Rw
46dB Rw
46dB Rw
