The double glazed Parallel partitioning system is perfect for meeting rooms and executive suites that require higher levels of acoustic privacy, achieving 55dB Rw.
The double-glazed Parallel partitioning system is ideal for meeting rooms and executive suites where acoustic privacy is essential. Its mullion-free design features two separate skins of dry-joint glass panels, with framing available in single or double glazing.

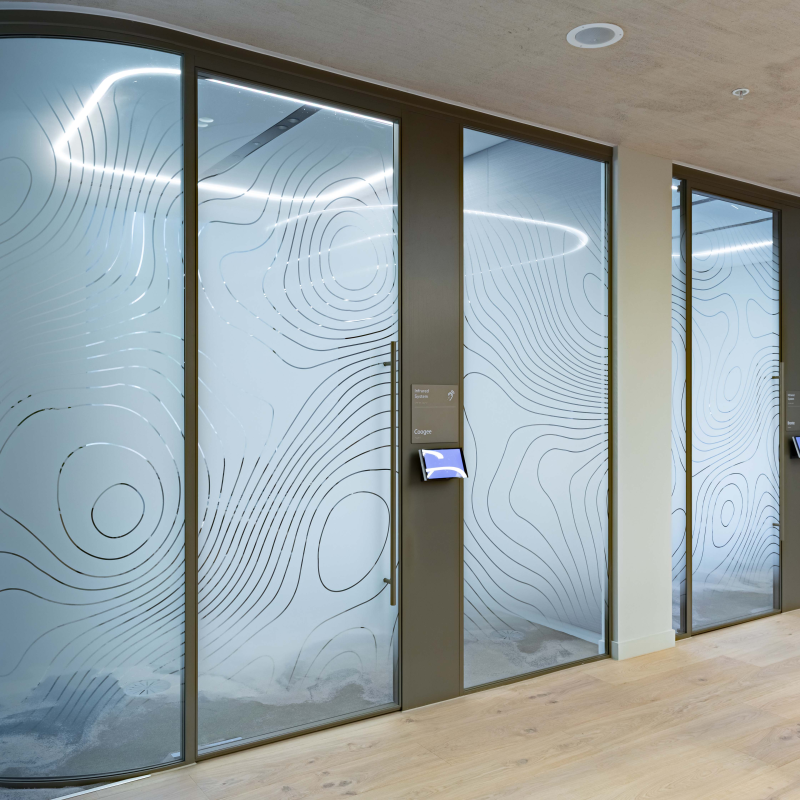

The slimline Parallel 50 delivers up to Rw 45 dB of acoustic performance and can be crafted into stunning curved configurations. The wider Parallel 84 profile works seamlessly alongside our elegant top-hung single or double sliding doors.
Parallel can be installed with concealed deflection heads and offers multiple base track height options, allowing designers to maintain perfectly aligned horizontal lines throughout a space. Every detail is designed to balance performance with refined architectural elegance

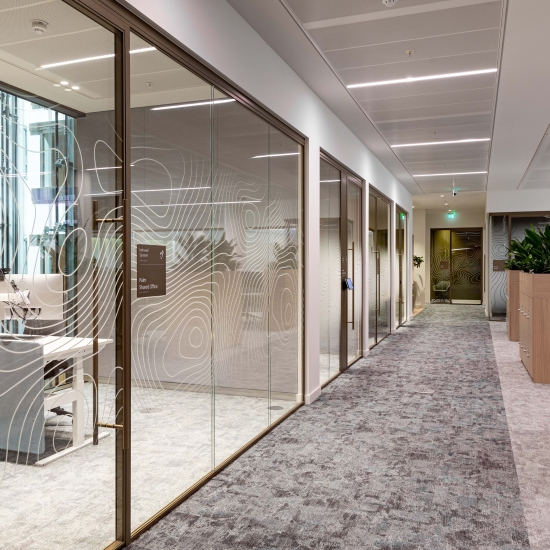

Technical Enquiry| | ACOUSTICS | up to Rw 48 dB |
 | AVAILABLE FINISHES | Polyester powder coated, anodised |

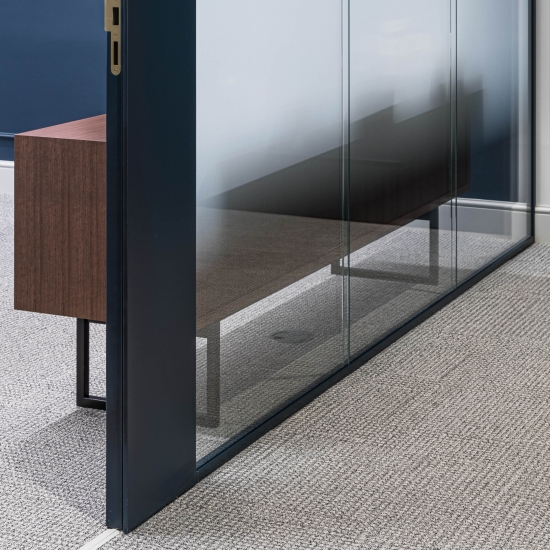

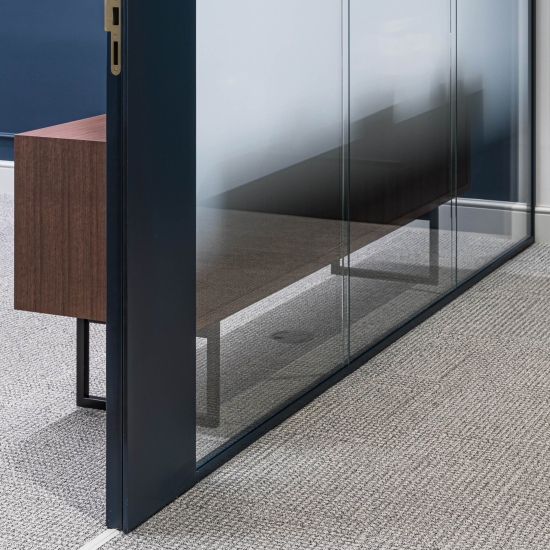

 | BASE DETAIL | from 25mm to 50mm |
 | COMPATIBILITY | Hogan, Align, Timber |
 | CURVE RADIUS | min. 550mm |
 | EDP | In Progress |
 | FRAME MATERIAL | Hydro 2.0 Aluminium |
| | GLAZING OPTIONS | Double glazed |
 | HEAD DETAIL | up to ±40mm |
| | MAX HEIGHT | up to 3600mm |
The double glazed Parallel partitioning system is perfect for meeting rooms and executive suites that require higher levels of acoustic privacy, achieving up to Rw 55 dB.
Our Parallel double glazed partitioning system comes in 50mm, 100mm and 125mm variations and is perfect for environments that require higher levels of acoustic performance.
This mullion-free system uses two separate skins of dry joint glass panels, with framing available in single or double glazing.
Parallel 50 achieves 45dB Rw using 2x12.8mm acoustic laminated glass. Slimline and minimalist, it is ideal for environments needing flexibility of design.
Parallel 100 sees a step up in acoustic performance, achieving 50dB Rw while using the same glass as Parallel 50 due to the increased cavity space.
Finally Parallel 125 is capable of achieving a highly impressive 55dB Rw through installation with 2x16.8mm acoustic laminated glass. The 125mm depth sees it fit easily alongside stud walls of varying thicknesses and offers exemplary noise reduction performance.

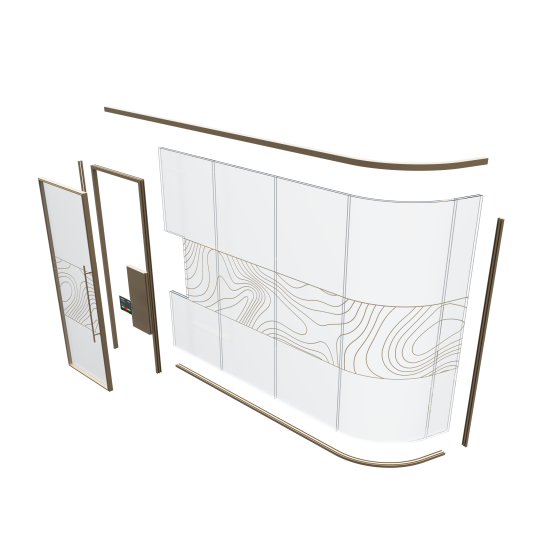

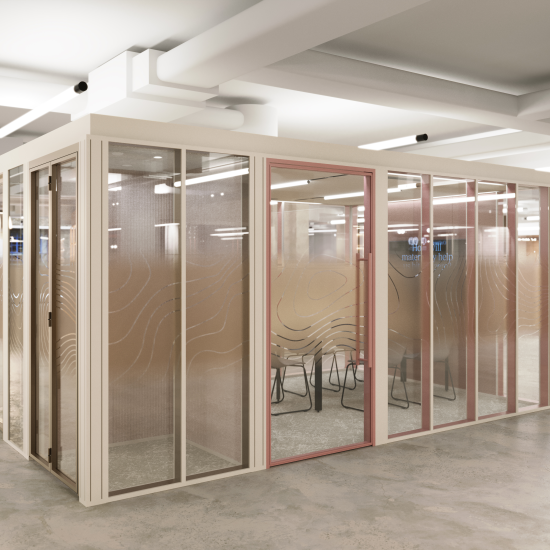

Parallel partitioning can be manufactured up to 3000mm in height or extended to 3650mm through the use of transom bars, while glazing can be produced as toughened, laminated or with decorative elements based on requirements.
Commonly installed using deflection heads of +/- 15-40mm, our double-glazed systems can be installed alongside various sliding and pivoting doors from our extensive range.
All of our products are available on the NBS Source platform.
Use the links below to add our range of Parallel glazed partitioning systems directly into your specification.
At Radii Planet Group, we are leading this transformation by transitioning to using Hydro Recycled Low Carbon 2.0 Aluminium for our Radii aluminium framed glass partitions.
Hydro Recycled Low Carbon 2.0 guarantees that for every kilogram of aluminium produced, only up to 2kg of CO2e is emitted—substantially lower than traditional aluminium production.
By utilising recycled content, we not only reduce emissions but also conserve valuable resources, demonstrating how circular economy practices can play a key role in mitigating climate change.
