Parallel.
The double glazed Parallel partitioning system is perfect for meeting rooms and executive suites that require higher levels of acoustic privacy, achieving 55dB Rw.
Parallel 84.
Fire Rating
Non Fire Rated
Acoustics
Up to Rw 45 dB
Maximum Height
up to 3650mm
Slimline and minimalist with a top-hung sliding door, the 84 mm width Parallel 84 double glazed partition system is ideal for environments needing flexibility of design.
KEY FEATURES & OPTIONS.

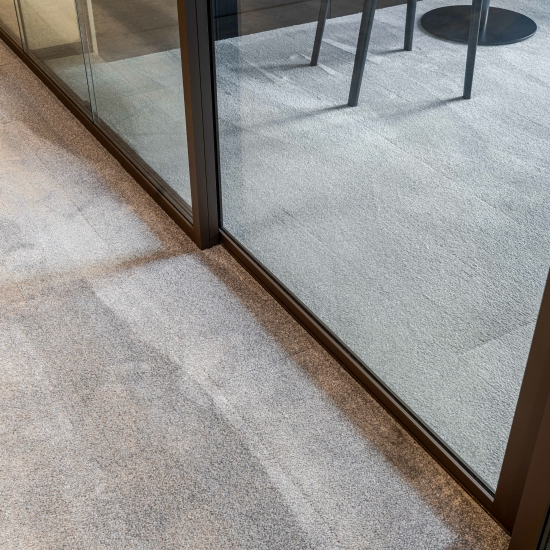

- 1. Uses two 12.8 mm acoustic laminated glass.

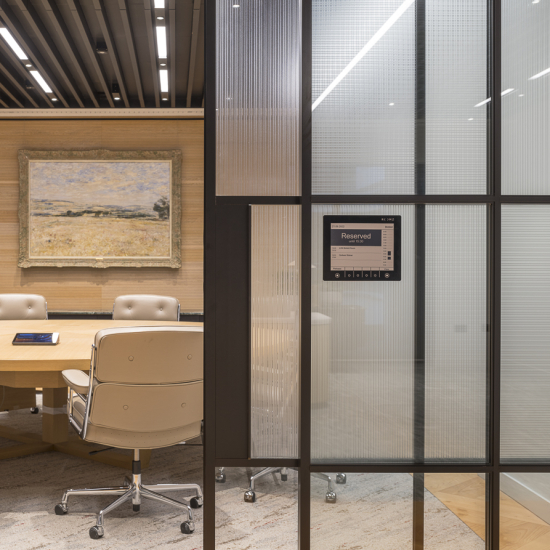

- 2. Available with our popular 'Rio' feature banding.
- 3. Environmental Product Declaration (EPD) available on request.
01.
Downloads
To download these files, you need to log into the site. Click here to login or register for free.
Radii Environmental Product Declaration (EPD) - DG Partition
Parallel Glazed Partitions
Download File
HIGH-END COMMERCIAL DOUBLE GLAZED PARTITIONS
Our Parallel double glazed partitioning system comes in 50mm, 100mm and 125mm variations and is perfect for environments that require higher levels of acoustic performance.
This mullion-free system uses two separate skins of dry joint glass panels, with framing available in single or double glazing.
Parallel 50 achieves 45dB Rw using 2x12.8mm acoustic laminated glass. Slimline and minimalist, it is ideal for environments needing flexibility of design.
Parallel 100 sees a step up in acoustic performance, achieving 50dB Rw while using the same glass as Parallel 50 due to the increased cavity space.
Finally Parallel 125 is capable of achieving a highly impressive 55dB Rw through installation with 2x16.8mm acoustic laminated glass. The 125mm depth sees it fit easily alongside stud walls of varying thicknesses and offers exemplary noise reduction performance.
Parallel partitioning can be manufactured up to 3000mm in height or extended to 3650mm through the use of transom bars, while glazing can be produced as toughened, laminated or with decorative elements based on requirements.
Commonly installed using deflection heads of +/- 15-40mm, our double-glazed systems can be installed alongside various sliding and pivoting doors from our extensive range.
ADD TO YOUR NBS SPECIFICATION
All of our products are available on the NBS Source platform.
Use the links below to add our range of Parallel glazed partitioning systems directly into your specification.
Low Carbon Aluminium.
At Radii Planet Group, we are leading this transformation by transitioning to using Hydro Recycled Low Carbon 2.0 Aluminium for our Radii aluminium framed glass partitions.
Hydro Recycled Low Carbon 2.0 guarantees that for every kilogram of aluminium produced, only up to 2kg of CO2e is emitted—substantially lower than traditional aluminium production.
By utilising recycled content, we not only reduce emissions but also conserve valuable resources, demonstrating how circular economy practices can play a key role in mitigating climate change.
