IsoClear

The complete all-rounder. Contemplate full clarity with maximum transparency.

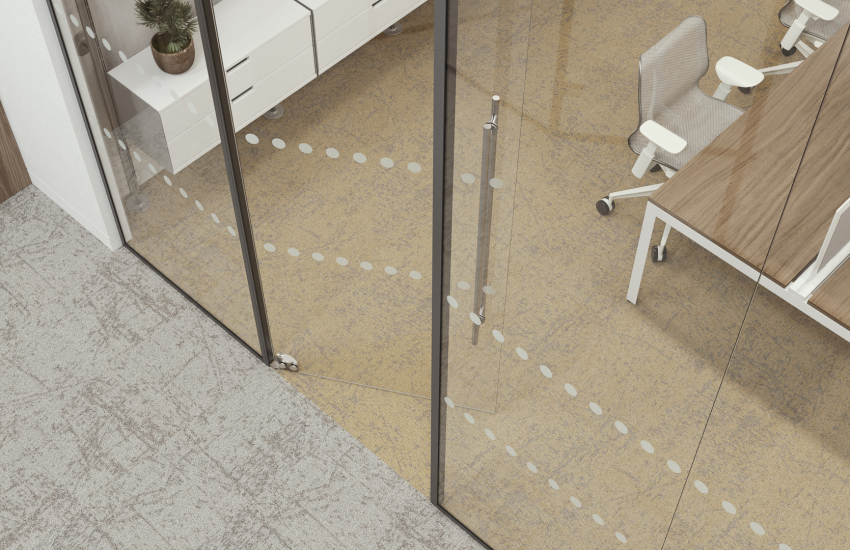

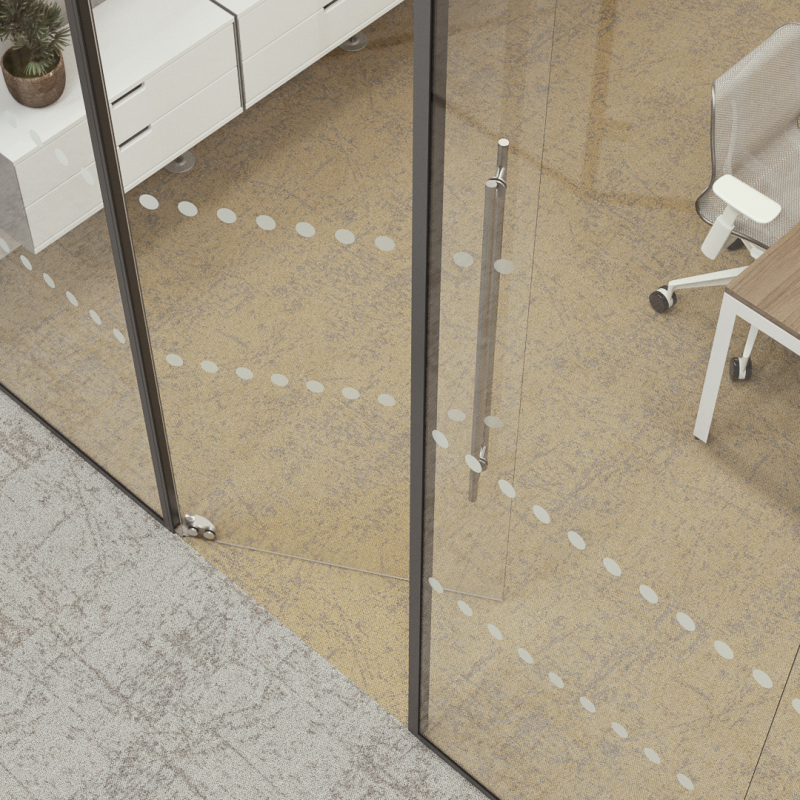

Planet IsoClear is the complete all-rounder. It offers a frame free door leaf, set within our slim profiled aluminium door frame.

ACOUSTICS
up to Rw 34 dB

FIRE RATING
Non fire rated

MAX HEIGHT
up to 3000mm

Downloads Specifications

Key Features.

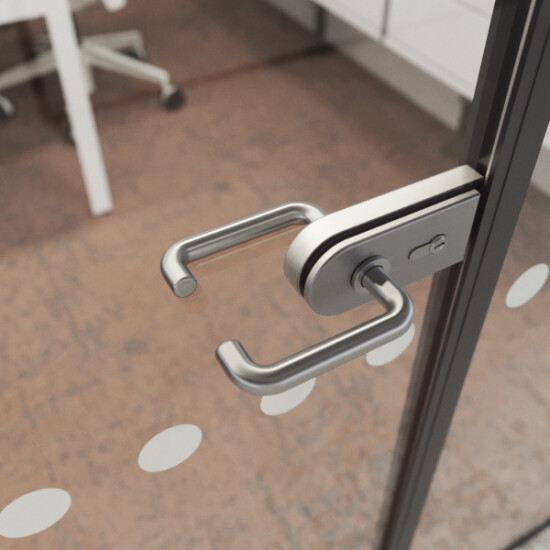

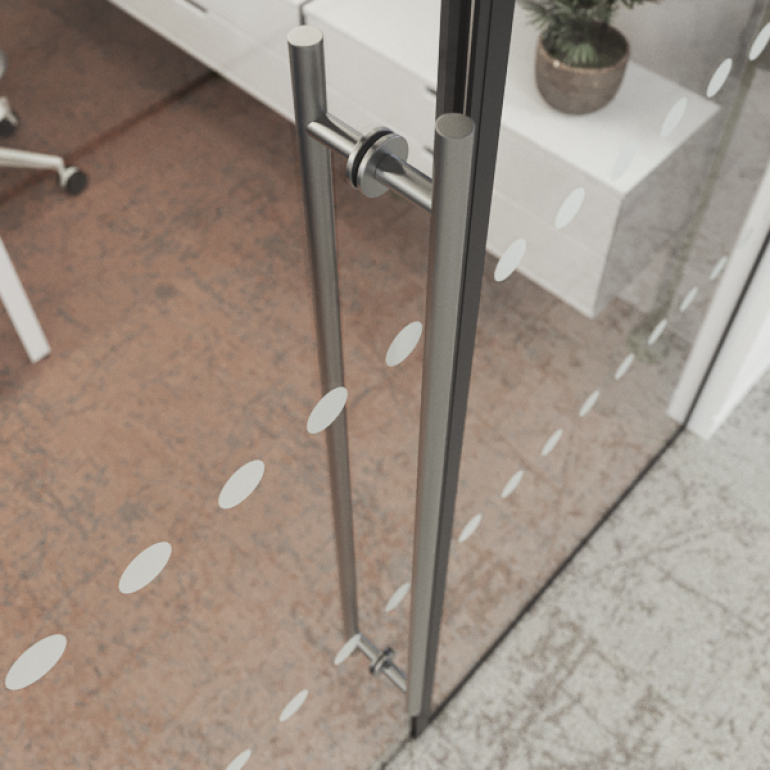

1. IsoClear can be specified with Rondo (rounded), or Classic (square) lever lockset profiles, as well as pull handles.

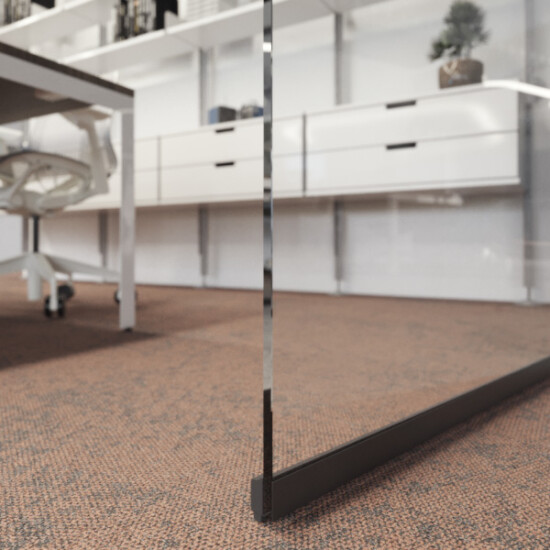

2. IsoClear uses 12mm clear float toughened glass for maximum transparency

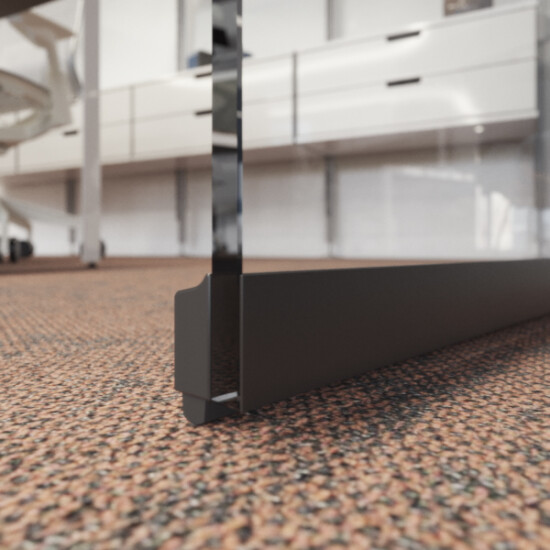

3. Acoustic attenuation of up to 34dB Rw can be achieved through the addition of acoustic drop seals.

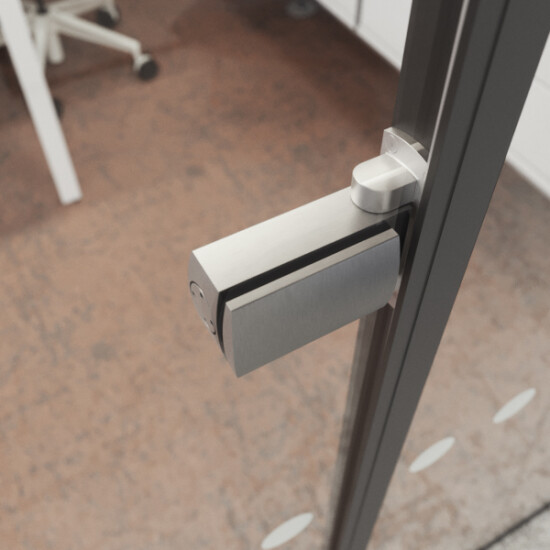

4. Various hinge options and finishes including self-closing.

IsoClear can be specified with Rondo (rounded), or Classic (square) lever lockset profiles, as well as pull handles.

IsoClear uses 12mm clear float toughened glass for maximum transparency

Acoustic attenuation of up to 34dB Rw can be achieved through the addition of acoustic drop seals.

Various hinge options and finishes including self-closing.

01.

Technical Information.

	ACCESS CONTROL OPTIONS	Exposed mag lock, electronic strike plate, electronic lever handles
	ACOUSTICS	up to Rw 34 dB
	AVAILABLE FINISHES	PPC powder coated, anodised
	DOOR SWING	Single action
	FIRE RATING	Non fire rated
	FRAME MATERIAL	Aluminium
	GLASS THICKNESS	12mm
	IRONMONGERY OPTIONS	Lever, pull, pad handles, push plates
	LEAF OPTIONS	Single, double
	MAX HEIGHT	up to 3000mm
	OVERPANEL OPTIONS	Rectangular, shaped

Downloads

IsoClear Glazed Swing Door - Planet BIM Models

Unlock Download

IsoClear Glazed Swing Door - Planet Data Sheet

Unlock Download

IsoClear Glazed Swing Door - Planet NBS Specification Template

Unlock Download
