IsoPro.

Fire Rating
NON FIRE RATED

Acoustics
UP TO 42dB Rw

Maximum Height
UP TO 3000mm

Available in single offset glazed and double offset glazed, IsoPro's clean lines and exceptional acoustic performance is adaptable to any environment.

Oustanding Acoustic Performance.

The IsoPro doorset has a 54mm thick frame that offers the specifier elegant lines and outstanding performance and is available in single offset and double offset configurations.

IsoPro's rebated glazed doors sit flush with all Planet partitioning systems when viewed from the corridor side. Internal alignment can also be achieved if combined with Pure 54 glazed partitioning.

With acoustic performance up to an impressive 42dB Rw it offers uncompromising design without sacrifice.

Explore our complete range of glass partitions to find the perfect solution for your space.

Key features & Options.

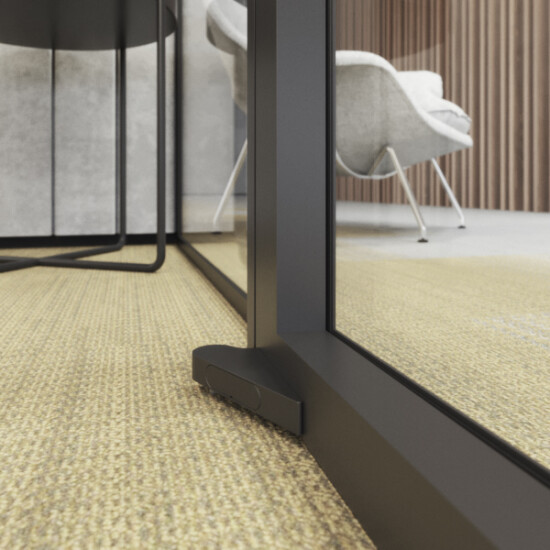

1. IsoPro comes with floor pivots or hinges based on requirements.

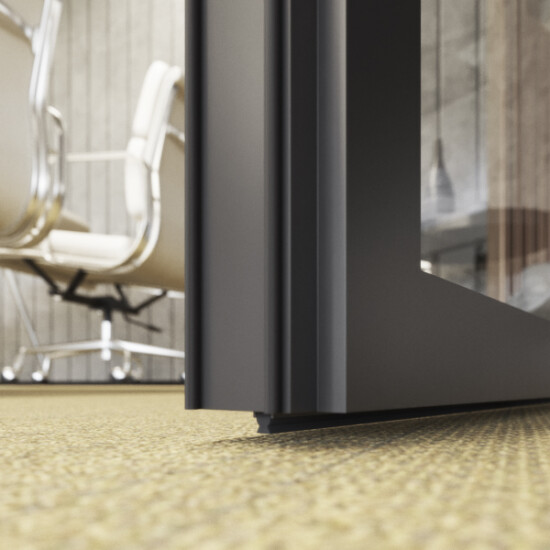

2. Twin seals to the stile profile and optional drop down seals maintain acoustic attenuation when the door is closed,.

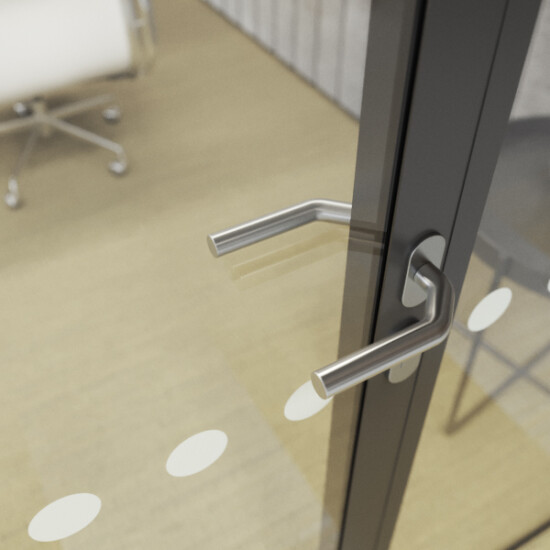

3. IsoPro can be fitted with a range of lever lock or pull handle ironmongery sets.
4. IsoPro features a flush finish to the doorframe, using a rebated profile.

IsoPro comes with floor pivots or hinges based on requirements.

IsoPro can be fitted with a range of lever lock or pull handle ironmongery sets.

01.

Technical Information

DOOR THICKNESS	in mm	54mm
DESIGN OPTIONS	Metal framed glass door leaf All glass door leaf Swing door Sliding door	✓ ✗ ✓ ✗
GLAZING OPTIONS	Single Glazed Double Glazed	✓ ✓
LEAF OPTIONS	Single leaf Leaf and a half	✓ ✓
IRONMONGERY OPTIONS	Lever handles and locks Pull handles Self closing floorspring Overhead door closer Acoustic drop down seal	✓ ✓ ✓ ✓ ✓
FIRE PERFORMANCE (SINGLE DOOR)	Non Fire Rated	✓
ACOUSTIC PERFORMANCE	Minimum	34dB Rw
(SINGLE DOOR)	Maximum	42dB Rw

Downloads

IsoPro Glazed Rebated Swing Door - Planet NBS Specification Template

Download File

IsoPro Rebated Glazed Swing Door - Planet Data Sheet

Download File

Planet Environmental Product Declaration (EPD) - Doors

EclipseTec, EclipseClear, IsoPro

Download File
