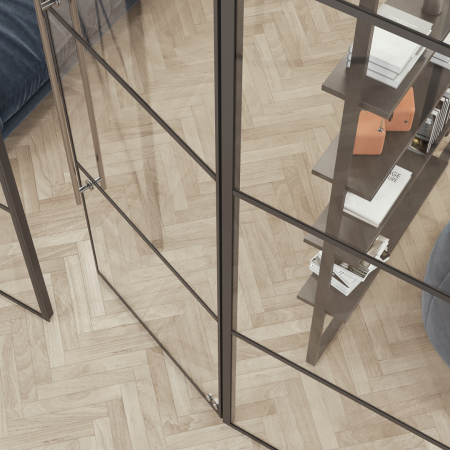

IsoTec

Slim visual styling combined with toughened frames for when both style and substance are desired.

Coming the ultra-slimline frame and toughened aluminium doorleaf, IsoTec decisively proves that less can be more with a sleek aesthetic that makes it resoundingly popular for use in corporate environments.

ACOUSTICS
up to Rw 34 dB

FIRE RATING
Non fire rated

MAX HEIGHT
up to 3000mm

Downloads Specifications Enquire Now

Key Features.

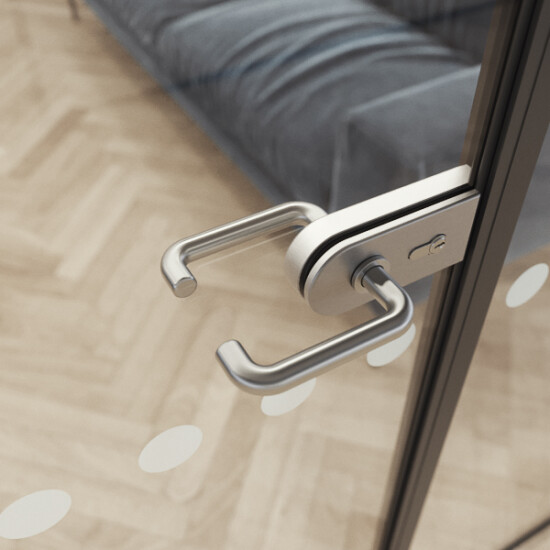

1. IsoTec can be fitted with a range of lever lock or pull handle ironmongery sets.

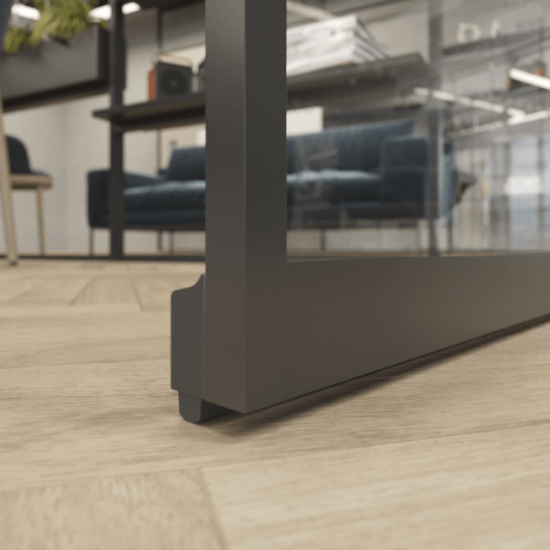

2. Acoustic attenuation of up to 34dB Rw can be achieved through the addition of acoustic drop seals.

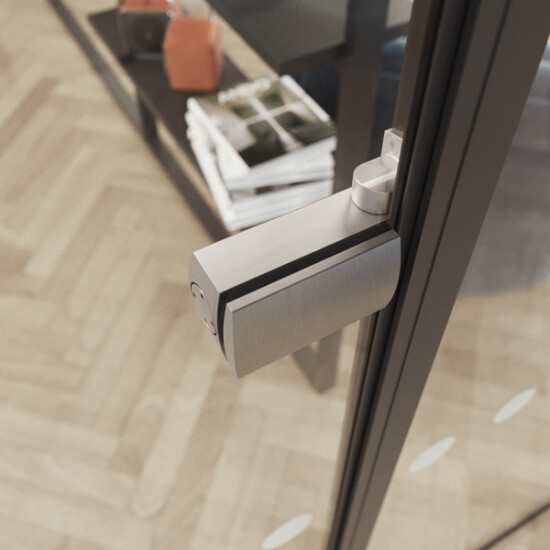

3. Various hinge options and finishes including self-closing.

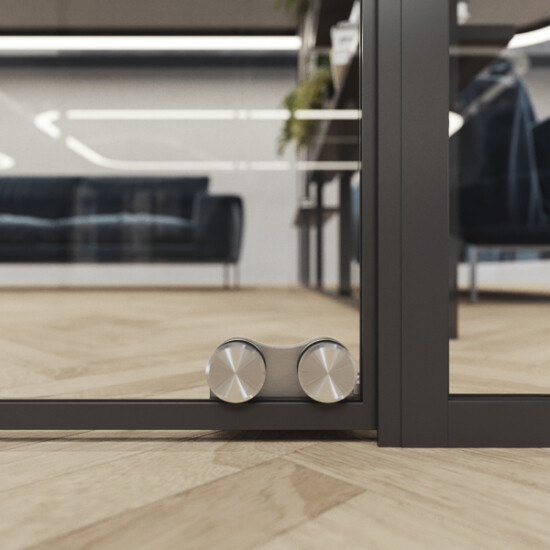

4. Floor pivots can be used in place of hinges.

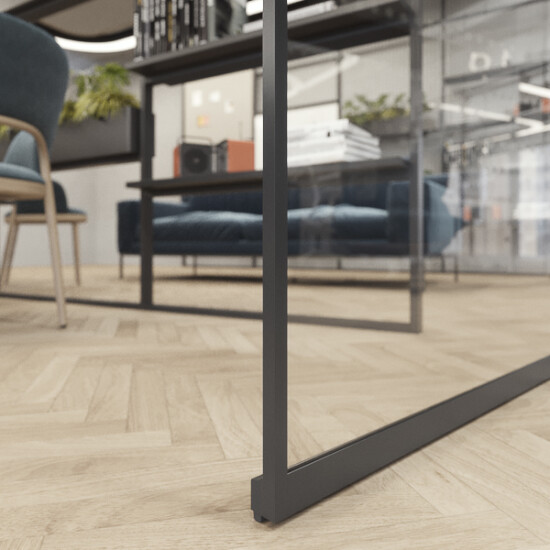

5. Ultra slimline visual frame measuring just 16mm that can be polyester powder coated or anodised for a metallic finish.

IsoTec can be fitted with a range of lever lock or pull handle ironmongery sets.

Acoustic attenuation of up to 34dB Rw can be achieved through the addition of acoustic drop seals.

Various hinge options and finishes including self-closing.

Floor pivots can be used in place of hinges.

Ultra slimline visual frame measuring just 16mm that can be polyester powder coated or anodised for a metallic finish.

01.

Technical Information.

	ACCESS CONTROL OPTIONS	Exposed mag lock, access control handles (XS4), electronic strike plate
	ACOUSTICS	up to Rw 34 dB
	AVAILABLE FINISHES	PPC powder coated, anodised
	DOOR SWING	Single action
	FIRE RATING	Non fire rated
	FRAME MATERIAL	Aluminium
	GLASS THICKNESS	12mm
	IRONMONGERY OPTIONS	Lever, pull, pad handles, push plates
	LEAF OPTIONS	Single, double
	MAX HEIGHT	up to 3000mm
	OVERPANEL OPTIONS	Rectangular, shaped

Downloads

IsoTec Micro-Framed Glazed Swing Door - Planet BIM Models

Unlock Download

IsoTec Micro-Framed Glazed Swing Door - Planet Data Sheet

Unlock Download

IsoTec Micro-Framed Glazed Swing Door - Planet NBS Specification Template

Unlock Download

Complete Range.

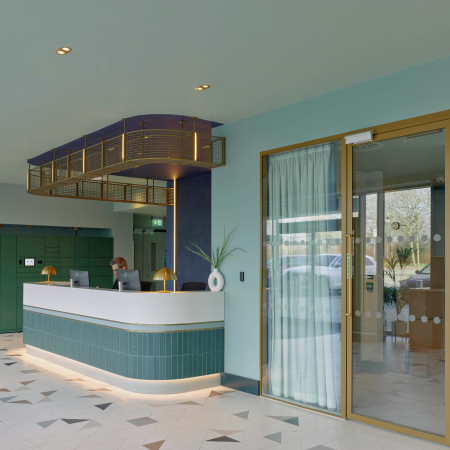

IsoPro
