EclipseClear

EclipseClear.

Fire Rating
NON FIRE RATED

Acoustics
NON ACOUSTIC

Maximum Height
UP TO 3000mm

Planet EclipseClear sliding glass doors use minimalistic aluminium ceiling mounted sliding door gears for a striking floating aesthetic.
Minimal Running Gear.

Minimal Running Gear.

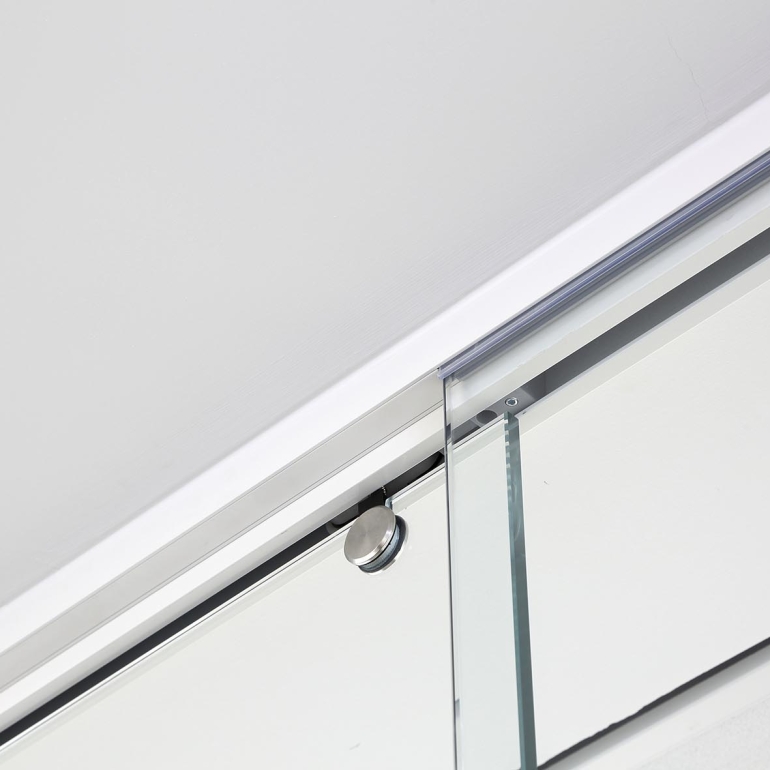

Our EclipseClear  sliding glass doors use minimalistic aluminium ceiling mounted sliding door gear.

Fully glazed door leaves are suspended from the door gear using concealed trolleys with discreet clamped fittings for a striking floating aesthetic, while the head track coordinates perfectly with our fixed glazing systems.

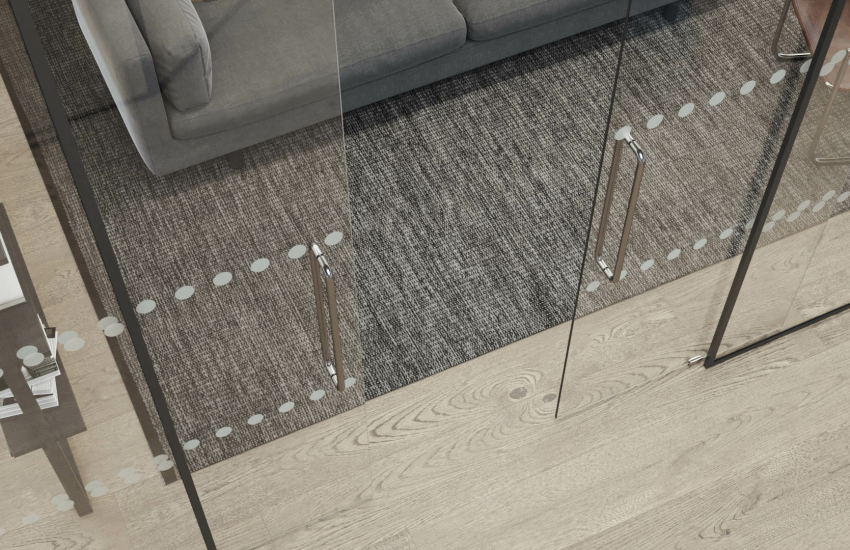

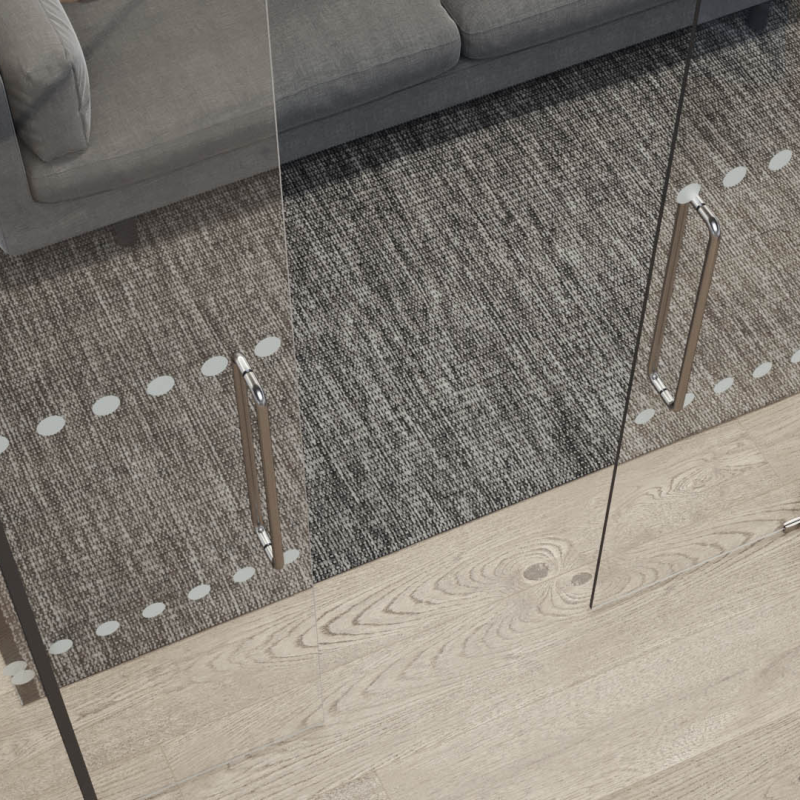

EclipseClear sliding glass doors offer a range of configuration options, including single and double door formats. If specified with optional soft close devices, the door will gently reduce its closure speed and stop at the precise position that has been preset.

Minimal Running Gear.

Key features.

EclipseClear sliding glass doors offer a range of configuration options, including single and double door formats. When combined with PURE100, the door can neatly slide into the glazing cavity for ultimate efficiency. If specified with optional soft close devices, the door will gently reduce its closure speed and stop at the precise position that has been preset.

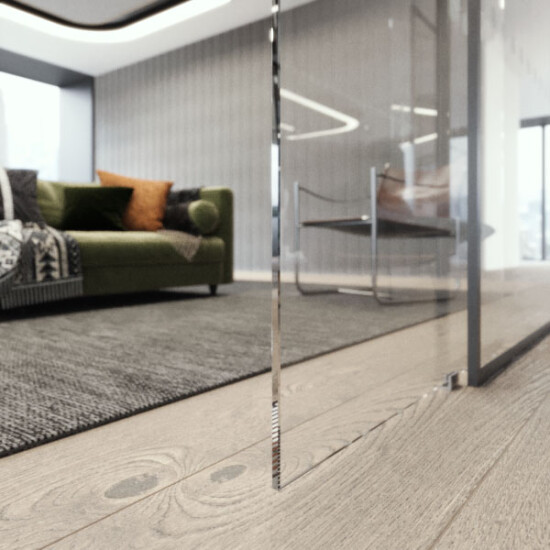

  • 1. EclipseClear offers a seamless interface to adjacent fixed glazed screens.

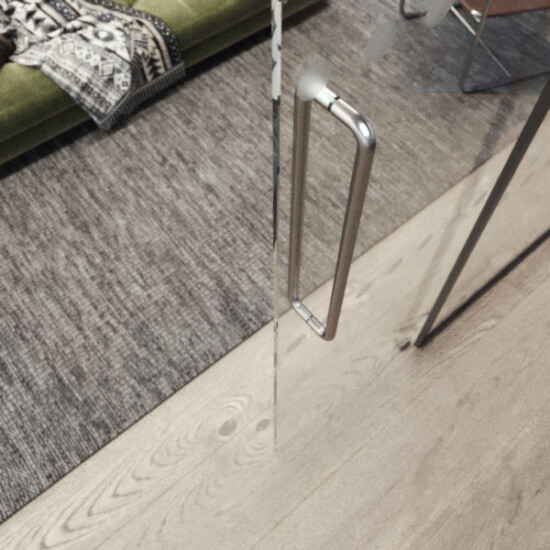

  • 2. Various ironmongery options.

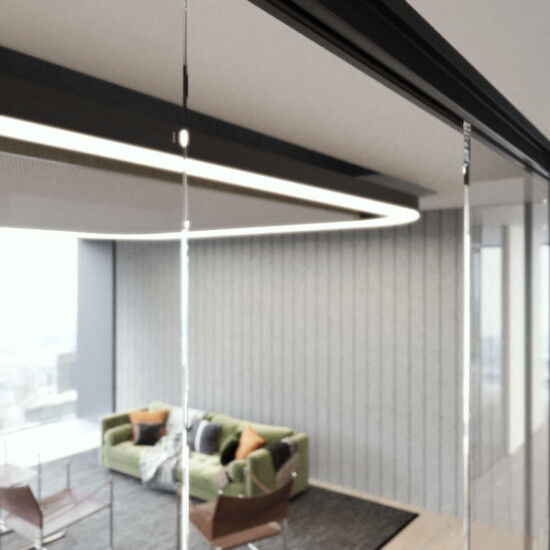

  • 3. Our EclipseClear sliding door track neatly interfaces with glazing head track.
01.

Technical Information

DOOR THICKNESS in mm
12mm
DESIGN OPTIONS Metal framed glass door leaf
All glass door leaf
Swing door
Sliding door




GLAZING OPTIONS Single Glazed
Double Glazed


LEAF OPTIONS Single leaf
Leaf and a half
Double leaf



IRONMONGERY OPTIONS Lever handles and locks
Pull handles
Self closing floorspring
Overhead door closer
Acoustic drop down seal





FIRE PERFORMANCE Non Fire Rated

(SINGLE DOOR) E30
Ei30
E60
Ei60
Maximum




non
ACOUSTIC PERFORMANCE Minimum
non
