Pure 100

100mm/4" Single & Double Glazed | Up to 54 dB

Our 100mm wide glazed partitioning offers superior acoustic performance with a vast range of configuration options, to satisfy even the most demanding of interior design schemes.

ACOUSTICS
up to Rw 54 dB (DG); 40 dB (SG)

FIRE RATING
Non fire rated

MAX HEIGHT
up to 3000mm

Downloads Specifications

Key Features.

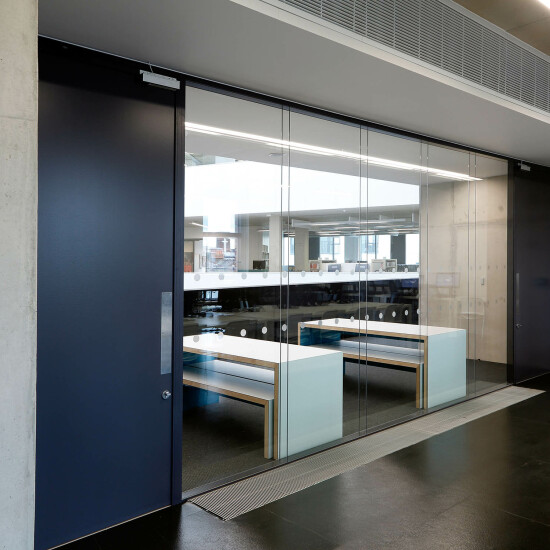

1. Pure 100 is compatible with all Planet door systems.

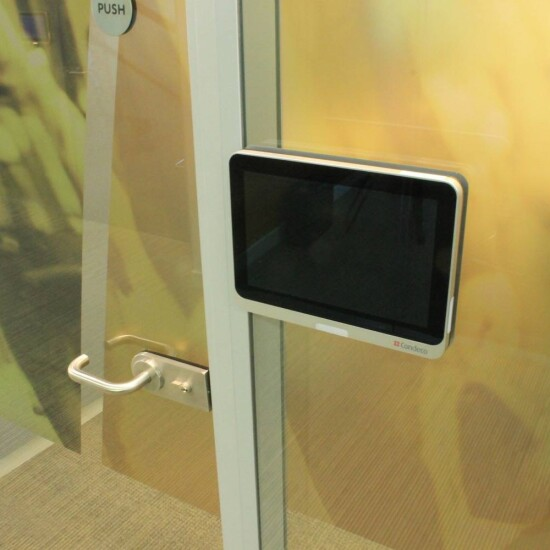

2. Room booking systems can be incorporated for enhanced building management.

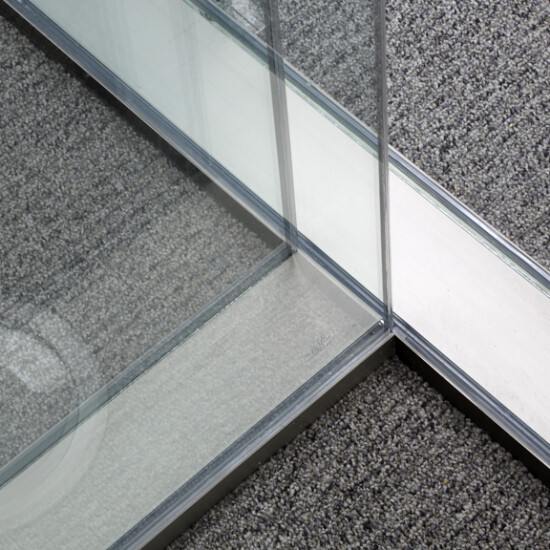

3. All glass three way junction with no mullions for maximum visual impact.

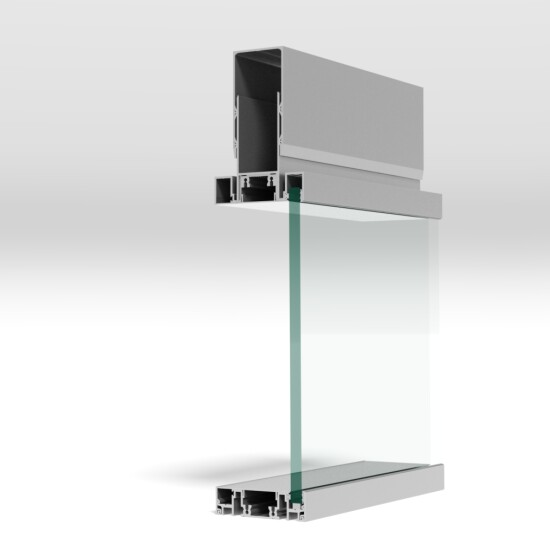

4. Deflection heads compensate for building movement up to ±40mm.

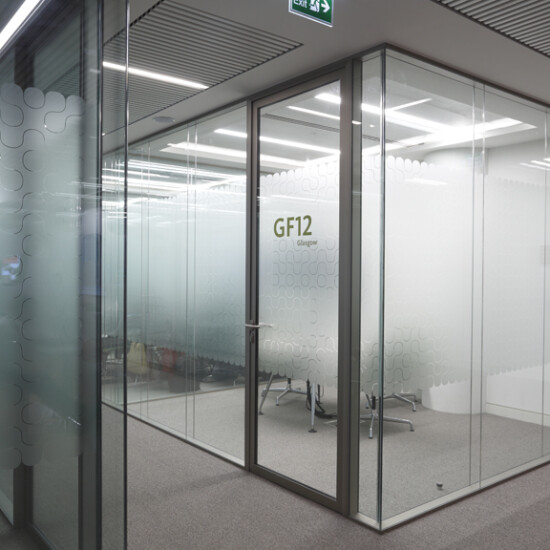

5. Pure 100 can be installed with 90 degree corner with mitred glass.
6. Framework can be provided in polyester powder coated or anodised finish.

Pure 100 is compatible with all Planet door systems.

Room booking systems can be incorporated for enhanced building management.

All glass three way junction with no mullions for maximum visual impact.

Deflection heads compensate for building movement up to ±40mm.

Pure 100 can be installed with 90 degree corner with mitred glass.

Framework can be provided in polyester powder coated or anodised finish.

01.

Technical Information.

	ACOUSTICS	up to Rw 54 dB (DG); 40 dB (SG)
	AVAILABLE FINISHES	PPC powder coated, polished, anodised
	CURVE RADIUS	min. 500mm
	DEFLECTION	±0/15/25/40mm
	DOORS	Pivoting, sliding
	FIRE RATING	Non fire rated
	FRAME MATERIAL	Aluminium
	FRAMEWORK	100mm(w) x 27mm(h)
	GLASS JOINT TYPE	Clear butt jointed
	GLASS THICKNESS	10mm to 15mm
	MAX HEIGHT	up to 3000mm

Downloads

Planet Environmental Product Declaration (EPD) - DG Partition

Pure 54 (DG), Pure 100 (DG)
Loft 54 (DG), Loft 100 (DG)

Unlock Download

Pure 100 (DG) Frameless Glass Partition System - Planet Designer's Guide

Unlock Download

Pure 100 (OSG-DG) - Planet Technical Drawings

Unlock Download

Pure 100 (OSG-DG) Frameless Glass Partition System - Planet BIM Models

Unlock Download

Pure 100 (OSG-DG) Frameless Glazed Partition System - Planet Data Sheet

Unlock Download

Pure 100 (OSG-DG) Frameless Glazed Partition System - Planet NBS Specification Template

Unlock Download

Pure 100 (OSG) Frameless Glass Partition System - Planet Designer's Guide

Unlock Download

Quotation mark — Ian Jolliff

Laing O’Rourke

Complete Range.

Pure 20

20mm/1" Single Glazed | Up to 40 dB

ACOUSTICS	up to Rw 40 dB
FIRE RATING	Non fire rated
MAX HEIGHT	up to 3000mm

Our 20mm wide single glazed partition offers a maximum glazed area, coupled with minimalistic perimeter profiles, for a truly frameless look.

Learn More

Pure 20 XL

20mm/1" Single Glazed Extended Height

ACOUSTICS	up to Rw 40 dB
FIRE RATING	Non fire rated
MAX HEIGHT	up to 4600mm

Pure 20 XL is a sleek, minimalistic single-glazed partition system with an slim 27mm profile designed for extended height applications.

Learn More

Pure 54

54mm/2" Single & Double Glazed | Up to 46 dB

ACOUSTICS	up to Rw 46 dB (DG); 40 dB (SG)
FIRE RATING	Non fire rated
MAX HEIGHT	up to 3000mm

Our narrow 54mm wide glazed partition is available in both single and double glazed formats and provides outstanding style with enhanced performance.

Learn More

Current Product

Pure 100

100mm/4" Single & Double Glazed | Up to 54 dB

ACOUSTICS	up to Rw 54 dB (DG); 40 dB (SG)
FIRE RATING	Non fire rated
MAX HEIGHT	up to 3000mm

Our 100mm wide glazed partitioning offers superior acoustic performance with a vast range of configuration options, to satisfy even the most demanding of interior design schemes.

Learn More

Pure 200

200mm/8" Triple Glazed | Rw 64 dB

ACOUSTICS	up to Rw 64 dB
FIRE RATING	Non fire rated
MAX HEIGHT	up to 3000mm

Designed for recording studios, broadcast suites, and confidential workspaces, Pure 200 delivers industry-leading acoustic performance with ratings up to Rw 64 dB.

Learn More
