Pure 20 XL

20mm/1" Single Glazed Extended Height

Pure 20 XL is a sleek, minimalistic single-glazed partition system with an slim 27mm profile designed for extended height applications.

ACOUSTICS
up to Rw 40 dB

FIRE RATING
Non fire rated

MAX HEIGHT
up to 4600mm

Downloads Specifications Enquire Now

Key Features.

1. Uses glazing up to 21.5mm to produce extended height screens up to 4600mm for wide expanses of glass.

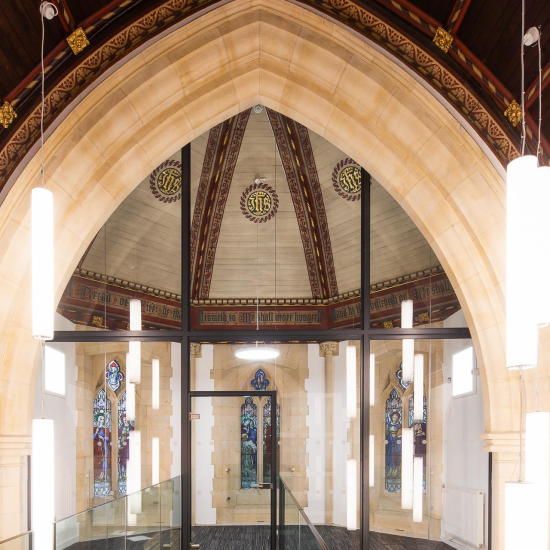

2. Compatible with doors up to 3000mm with 'halo' style installation and doorframe sitting within the glazing (no full height framework).
3. Available as Loft 20 XL - with mullions and transoms for industrial look and feel.
4. Engineered to withstand the unique structural demands of large open spaces like atriums and pods, structural glazing is precisely calculated and tested to ensure the highest levels of safety.
5. Deflection up to ±25mm.

Uses glazing up to 21.5mm to produce extended height screens up to 4600mm for wide expanses of glass.

Compatible with doors up to 3000mm with 'halo' style installation and doorframe sitting within the glazing (no full height framework).

Available as Loft 20 XL - with mullions and transoms for industrial look and feel.

Engineered to withstand the unique structural demands of large open spaces like atriums and pods, structural glazing is precisely calculated and tested to ensure the highest levels of safety.

01.

Technical Information.

	ACOUSTICS	up to Rw 40 dB
	AVAILABLE FINISHES	PPC powder coated, polished, anodised
	CURVE RADIUS	min. 500mm
	DEFLECTION	±0/15/25mm
	DOORS	Pivoting
	FIRE RATING	Non fire rated
	FRAME MATERIAL	Aluminium

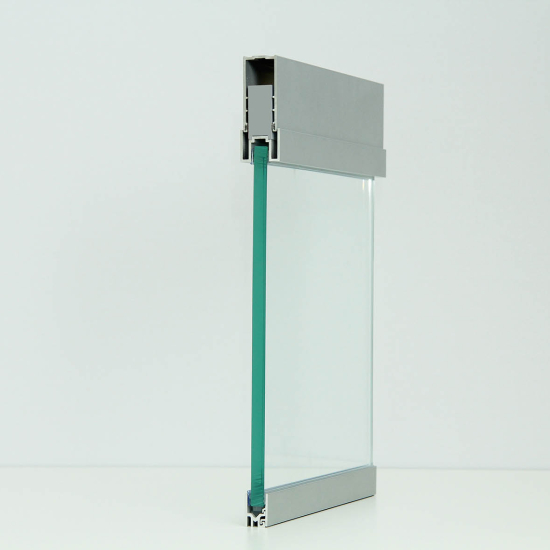

	FRAMEWORK	27mm(w) x 27mm(h)
	GLASS JOINT TYPE	Clear butt jointed
	GLASS THICKNESS	15mm to 21.5mm
	MAX HEIGHT	up to 4600mm

Downloads

Planet Environmental Product Declaration (EPD) - SG Partition

Pure 20, Pure 20 XL, Pure 54 (OSG)
Loft 20, Loft 54 (OSG)

Unlock Download

Planet Pure 20 - Technical Drawings

Unlock Download

Pure 20 (SG) Frameless Glazed Partition System - Planet NBS Specification Template

Unlock Download

Pure 20 XL (SG) Frameless Glass Partition System - Planet Designer's Guide

Unlock Download

Pure 20 XL (SG) Frameless Glazed Partition System - Planet Data Sheet

Unlock Download

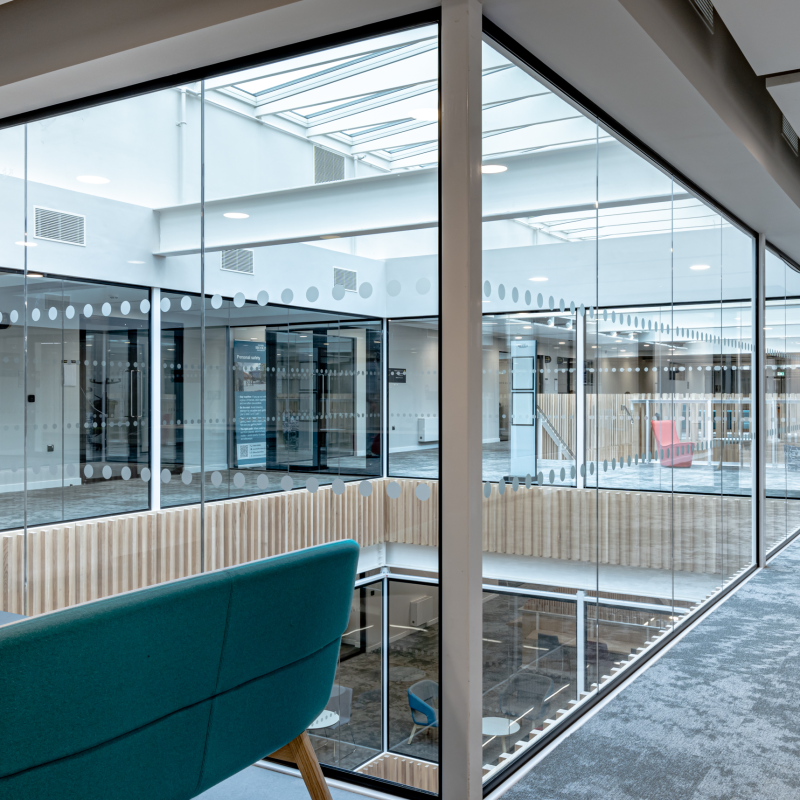

Oxford Brookes Uni Headington Hall Planet West 2025 Mid Res 16

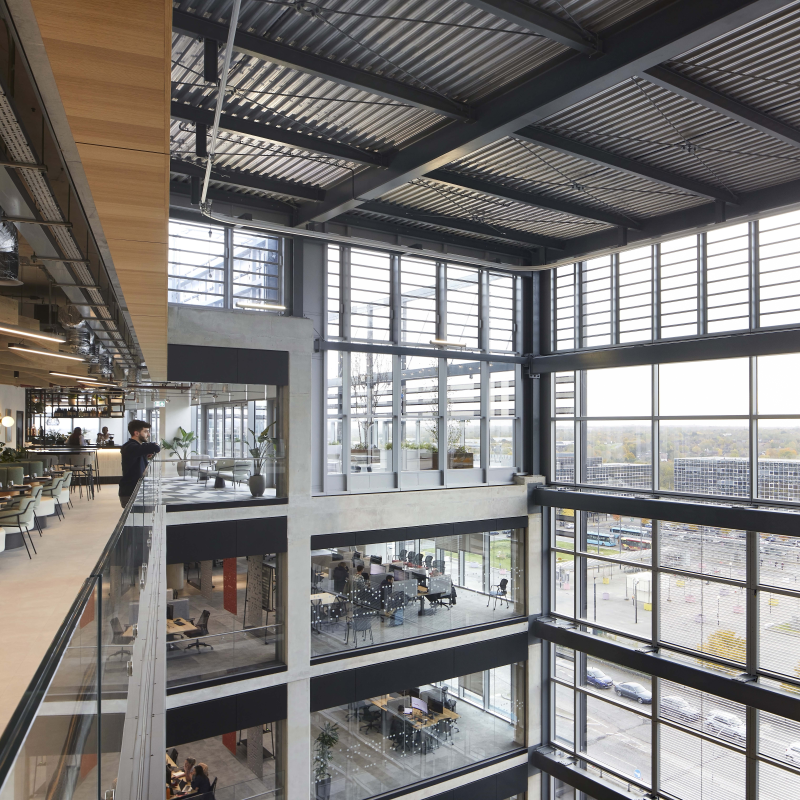

Santander Unity Place MK Planet 2024 LR 2 v2

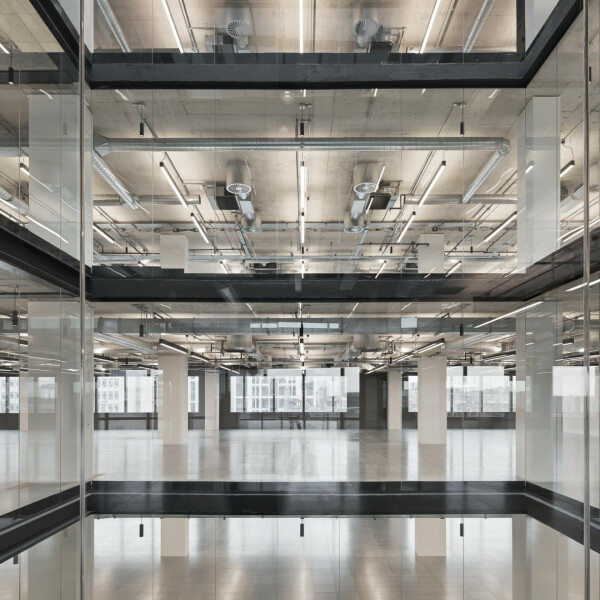

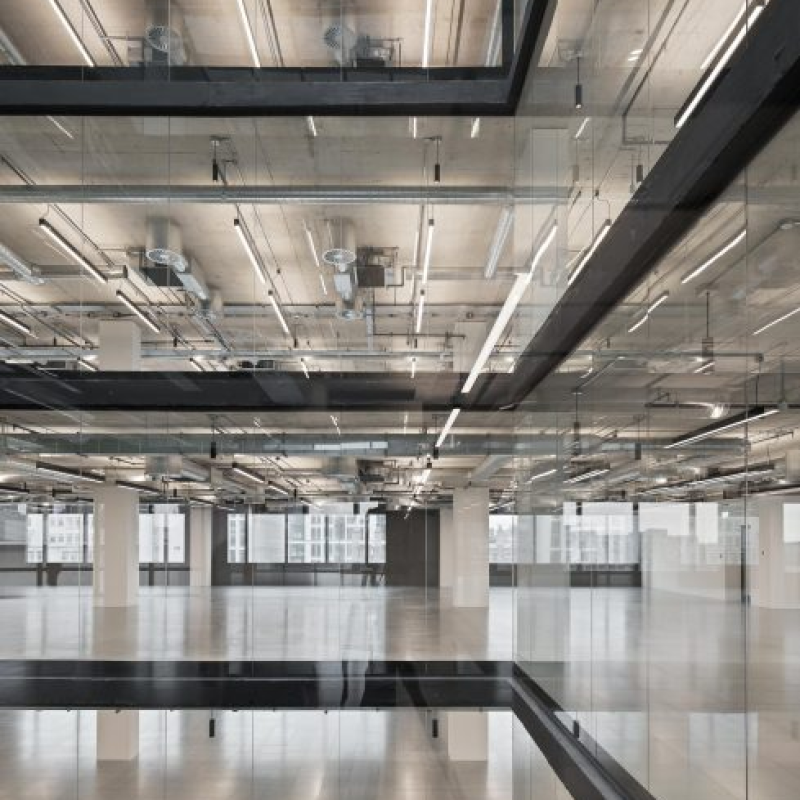

Web 100 Barbirolli photo by Tom Bird 3 489x733
