Pure 54

54mm/2" Single & Double Glazed | Up to 46 dB

Our narrow 54mm wide glazed partition is available in both single and double glazed formats and provides outstanding style with enhanced performance.

ACOUSTICS
up to Rw 46 dB (DG); 40 dB (SG)

FIRE RATING
Non fire rated

MAX HEIGHT
up to 3000mm

Downloads Specifications

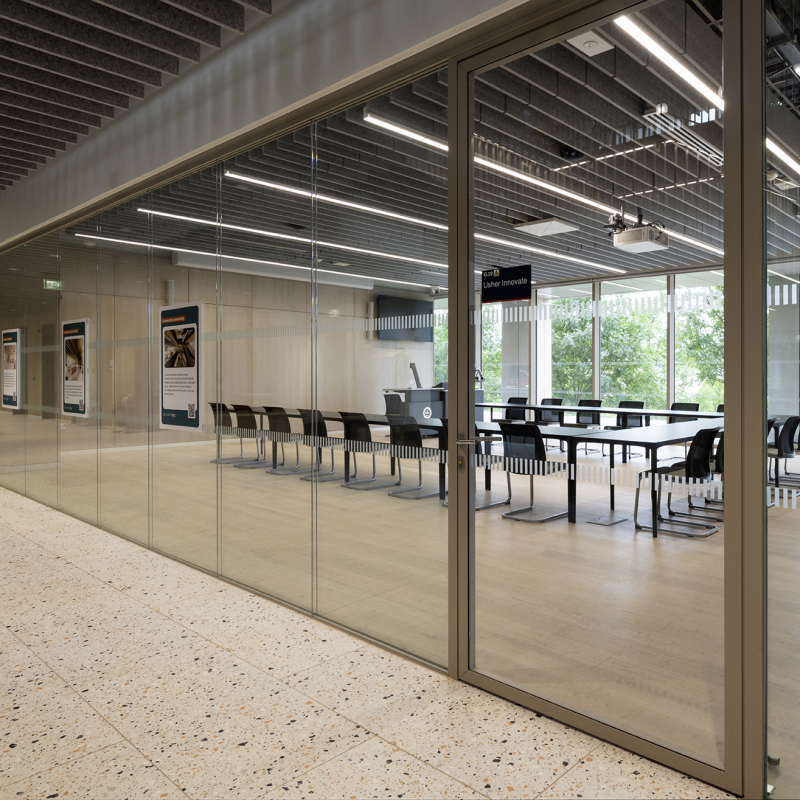

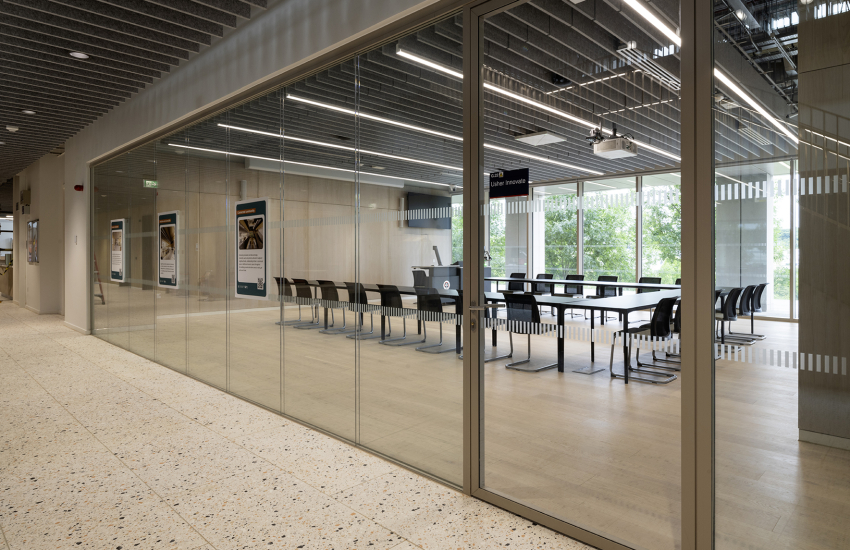

Usher Institute, Uni of Edinburgh 2025 (LR) (2)

Key Features.

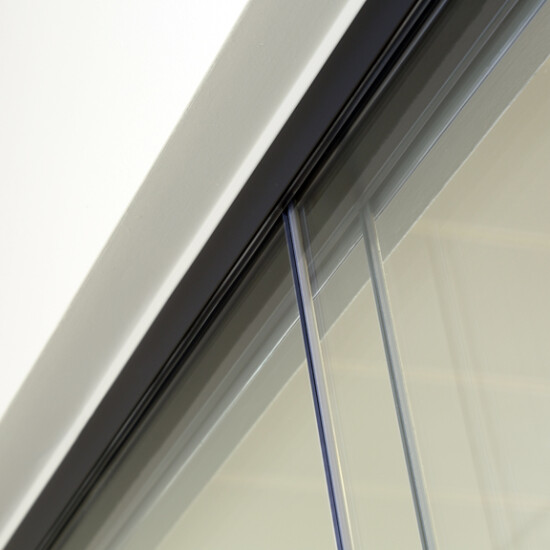

1. Head, base and abutment profile sections are 54mm x 27mm. The deflection head profile also matches both Pure 20 and Pure 100 respectively.

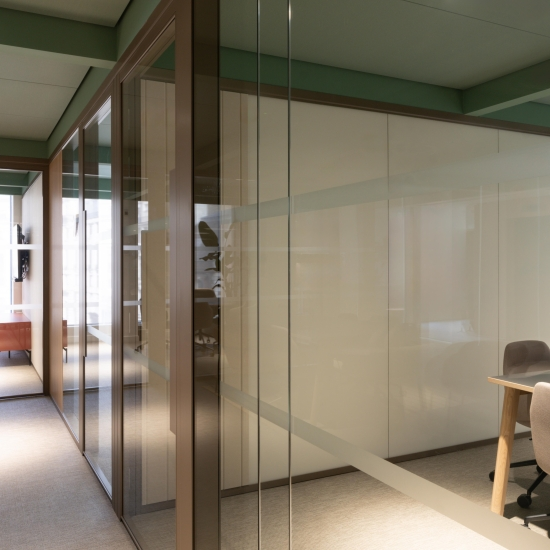

2. Available double glazed and single glazed offset configurations and interchangeable post configuration.

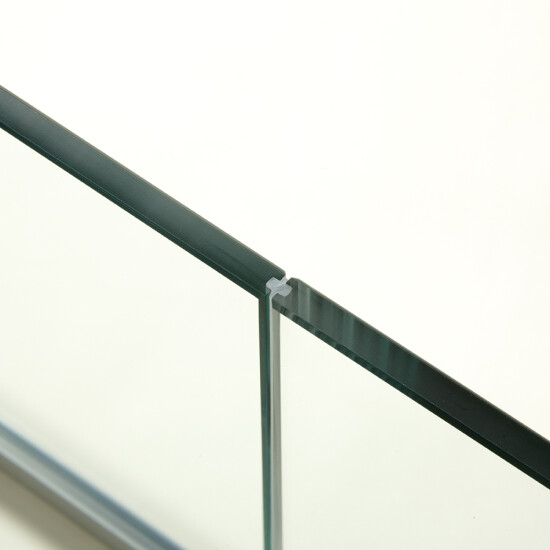

3. Glass to glass joints can be made using Vertex, Nova, Linea or Solar dry joints.
4. Framework can be provided in any polyester powder coated or anodised finish.

Available double glazed and single glazed offset configurations and interchangeable post configuration.

Glass to glass joints can be made using Vertex, Nova, Linea or Solar dry joints.

Framework can be provided in any polyester powder coated or anodised finish.

01.

Technical Information.

	ACOUSTICS	up to Rw 46 dB (DG); 40 dB (SG)
	AVAILABLE FINISHES	PPC powder coated, polished, anodised
	CURVE RADIUS	min. 500mm
	DEFLECTION	±0/15/25mm
	DOORS	Pivoting, sliding, solid timber, glazed
	FIRE RATING	Non fire rated
	FRAME MATERIAL	Aluminium
	FRAMEWORK	54mm(w) x 27mm(h)
	GLASS JOINT TYPE	Clear butt jointed
	GLASS THICKNESS	10mm to 15mm
	MAX HEIGHT	up to 3000mm

Downloads

Planet Environmental Product Declaration (EPD) - DG Partition

Pure 54 (DG), Pure 100 (DG)
Loft 54 (DG), Loft 100 (DG)

Unlock Download

Planet Environmental Product Declaration (EPD) - SG Partition

Pure 20, Pure 20 XL, Pure 54 (OSG)
Loft 20, Loft 54 (OSG)

Unlock Download

Pure 54 (DG) Frameless Glass Partition System - Planet Designer's Guide

Unlock Download

Pure 54 (OSG-DG) - Planet Technical Drawings

Unlock Download

Pure 54 (OSG-DG) Frameless Glazed Partition System - Data Sheet

Unlock Download

Pure 54 (OSG-DG) Frameless Glazed Partition System - Planet NBS Specification Template

Unlock Download

Pure 54 (OSG) Frameless Glass Partition System - Planet Designer's Guide

Unlock Download

Complete Range.

Pure 20

20mm/1" Single Glazed | Up to 40 dB

ACOUSTICS	up to Rw 40 dB
FIRE RATING	Non fire rated
MAX HEIGHT	up to 3000mm

Our 20mm wide single glazed partition offers a maximum glazed area, coupled with minimalistic perimeter profiles, for a truly frameless look.

Learn More

Pure 20 XL

20mm/1" Single Glazed Extended Height

ACOUSTICS	up to Rw 40 dB
FIRE RATING	Non fire rated
MAX HEIGHT	up to 4600mm

Pure 20 XL is a sleek, minimalistic single-glazed partition system with an slim 27mm profile designed for extended height applications.

Learn More

Current Product

Pure 54

54mm/2" Single & Double Glazed | Up to 46 dB

ACOUSTICS	up to Rw 46 dB (DG); 40 dB (SG)
FIRE RATING	Non fire rated
MAX HEIGHT	up to 3000mm

Our narrow 54mm wide glazed partition is available in both single and double glazed formats and provides outstanding style with enhanced performance.

Learn More

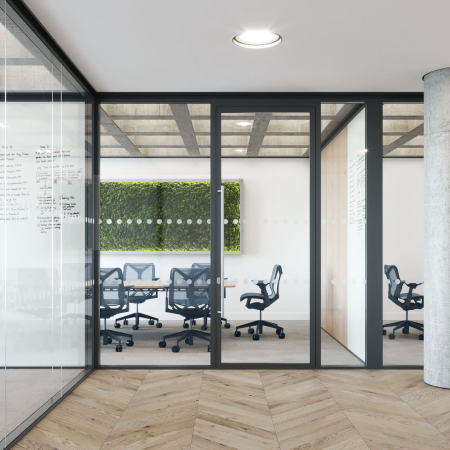

Pure 100
