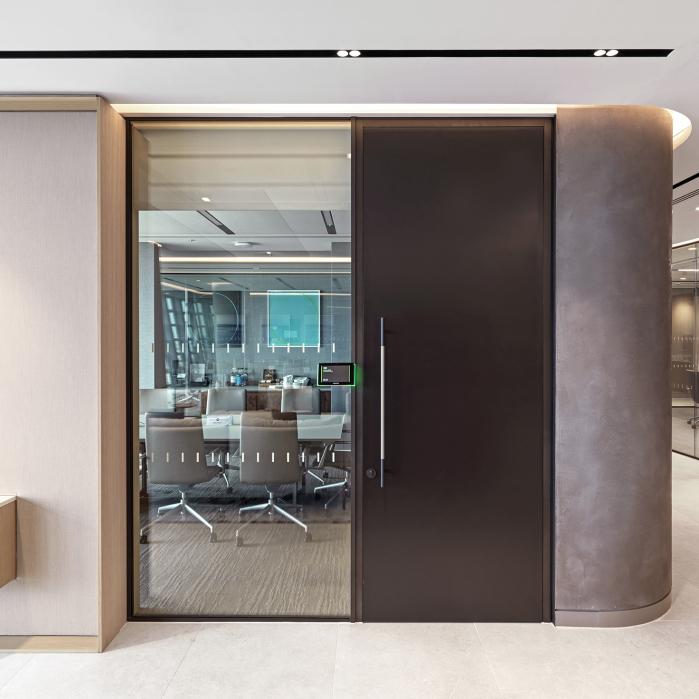

Timber Doors

+ -

Timber Doors

Enhanced acoustic core timber doors in aluminium & timber frames.

View Details

Hogan.

Fire Rating
NON FIRE RATED

Acoustics
Up to Rw 47dB

Maximum Height
Bespoke

The Hogan fully framed glazed pivoting door from Radii is a leading performer thanks to a unique threshold design that improves acoustic performance.

Hogan doors are available with both slimline and large door frames and can be specified with industrial-style banding to suit the aesthetic of your internal space and match adjacent glazed partition systems.

Key Features & Options.

1. Comes with a number of ironmongery options and can be fit with hinges or floor springs if on raised access flooring.
2. Unique threshold door seal design contributes to outstanding acoustic performance.
3. Available with slimline or larger door frames that offer 25mm sightlines, as well as 40mm or 65mm rails where needed.
4. Drop seals fit as standard help achieve acoustic attenuation of up to Rw 47 dB.
5. Door profiles integrate seamlessly with adjoining Radii glazed partitioning systems.

Comes with a number of ironmongery options and can be fit with hinges or floor springs if on raised access flooring.

Unique threshold door seal design contributes to outstanding acoustic performance.

Available with slimline or larger door frames that offer 25mm sightlines, as well as 40mm or 65mm rails where needed.

Drop seals fit as standard help achieve acoustic attenuation of up to Rw 47 dB.

Door profiles integrate seamlessly with adjoining Radii glazed partitioning systems.

01.

HOGAN 108 Cannon Street Radii 2024 MR 28

Technical Information

PRODUCT NAME	Hogan
PRODUCT TYPE	Framed Pivoting Glazed Door
FRAME MATERIAL	Aluminium
ACOUSTIC PERFORMANCE	50mm Doors - Rw 34 to 39 dB 64mm Doors - Rw 34 to 42 dB 100mm Doors - Rw 43 to 47 dB
ACOUSTIC CONFIGURATIONS	Rw 34 dB Single Glazed Rw 38 dB Single Glazed Rw 39 dB Double Glazed Rw 42 dB Double Glazed Rw 43 dB Double Glazed Rw 45 dB Double Glazed Rw 47 dB Double Glazed
FRAME ACCESSORIES	Glazed fanlight to non-full height doors; tech panel to incorporate room booking systems, access control and other electronics.
DOOR CONFIGURATION	Double doors Single action single leaf Unequal leaf doors Micro framed
IRONMONGERY OPTIONS	Handles: Full compatibility with bolt through and bonded handles pull handles as well as lever handle options. Locks: hand height and base rail locking available. Pivots: Radii face-fix pivot kits / lift off hinges. Access control: Abloy 351M80 / EL560 can be accepted into door and frame. Mag lock with bonded armature housing.

PIVOTING DOORS.

DURABLE PERFORMANCE.

Our range of pivoting swing doors add a modern finish to an interior space.

Available to suit a wide variety of applications including commercial offices, education and retail & leisure, they cover all manner of aesthetic and acoustic requirements and compliance.

With framed and frameless configurations as well as the ability to apply transom bars and manifestation finishes, our doorsets can be tailored to suit any setting.
