FirePro - The Pinnacle of Fire Rated Protection
FirePro unites elegant detailing with the highest levels of fire performance, giving architects freedom to design bold, refined spaces without compromising on safety.

Fully tested in-house and Certifire certified, FirePro offers unmatched assurance in a compliant, considered solution. Finishing options include brushed or bright polished stainless steel, or powder coating in a wide range of colours to suit any design vision.
Key Features of FirePro
  • Tested underfloor support fire separation
  • Concealed access control options
  • Concealed or exposed deflection
  • Minimal butt joints with deflection
  • Fully tested ironmongery, signage and manifestation
  • Tested automation
FirePro E
  • Up to E120 (screens); E90 (doors) within EI framework
  • Underfloor barrier fire separation
FirePro EI
  • Up to EI120 (screens); EI90 (doors)
  • Underfloor barrier fire separation
  • Bi-directional protection
  • Door max height: 3000mm (EI30–60); 2100mm (EI90)
EPD Logo

FirePro Environmental Product Declarations

Download verified EPD documentation via Radii Planet Group

EXPERTS IN MATCHING FIRE RATED COMPLIANCE TO DESIGN INTENT.

Fire is an intricately complex field, and applying the right solution is of utmost importance. At Radii Planet Group we aim to provide clients with the reassurance that, thanks to our experience, knowledge, and research and development capabilities, our specialist team are available to assist with all manner of technical and compliance related matters concerning the manufacture and installation of glazed fire rated systems.



Designing to fit the fire strategy.

We aim to engage with clients early in the design process of a building to form a complete understanding of the fire rated requirements of a space.

Within the initial stages, we explore product and solution ideas and sustainable alternatives, focusing on viable solutions rather than overwhelming options. By doing so, we maintain control over the budget and design, making necessary adjustments to suit the project's requirements.

This proactive approach ensures that our designs are not only feasible but also easily implementable, as we consider logistics and methodology aspects alongside the design development.

We believe in regular workshops and guidance during the design approval process, minimising unnecessary changes and expediting the design sign-off. This, in turn, allows for an earlier start on-site, reducing program risks. Additionally, we allocate more time within schedules for visual and performance mock-ups, sampling, and testing, all of which can be accomplished much sooner.

  • R12806 MSL FR01 001 A
  • 01.

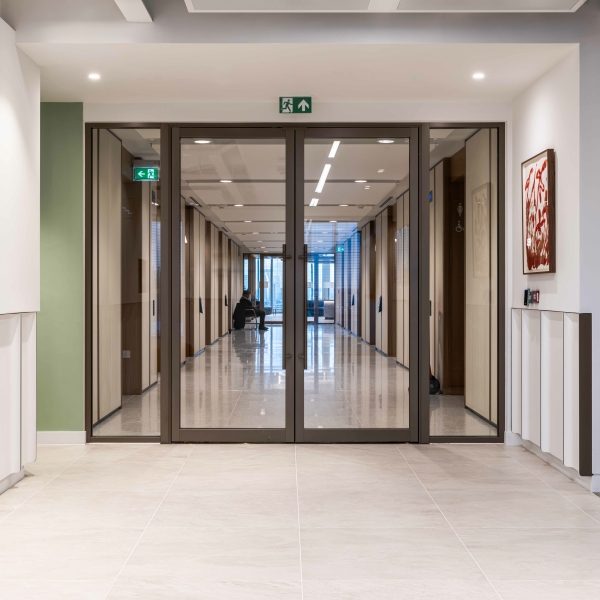

    FirePro EI - Integrity & Insulation

    FirePro EI systems set a new standard in fire protection, achieving up to EI120 for screens and EI90 for doors. This exceptional performance delivers both integrity and insulation, giving architects freedom to design bold, refined spaces without compromising on safety.

    Available in elegant single-glazed configuration, FirePro EI solutions have finishing options including brushed or bright polished stainless steel, or powder coating in any colour, with wider profile options to suit any design vision.

    With full bi-directional protection, concealed deflection heads, fully tested ironmongery on both fire and protected sides, and optional pre-fabricated concealed electric locks, FirePro EI unites elegant detailing with the highest levels of fire performance, giving designers both beauty and absolute peace of mind.

    FirePro EI - Integrity & Insulation
    FirePro EI - Integrity & Insulation
    00. FirePro EI Fire Rated Screens & Doors - Radii Planet Group Data Sheet

    00. FirePro EI Fire Rated Screens & Doors - Radii Planet Group Data Sheet

    Integrity & Insulation Doors & Screens

    Unlock Download
    04. FirePro Ei30 Single Glazed Partition System NBS Spec Download

    04. FirePro Ei30 Single Glazed Partition System NBS Spec Download

    Unlock Download
    05. FirePro Ei30 Single Glazed Door System NBS Spec Download

    05. FirePro Ei30 Single Glazed Door System NBS Spec Download

    Unlock Download
    06. FirePro Ei60 Single Glazed Partition System NBS Spec Download

    06. FirePro Ei60 Single Glazed Partition System NBS Spec Download

    Unlock Download
    07. FirePro Ei60 Single Glazed Door NBS Spec Download

    07. FirePro Ei60 Single Glazed Door NBS Spec Download

    Unlock Download
    08. FirePro Ei90 Single Glazed Partition System NBS Spec Download

    08. FirePro Ei90 Single Glazed Partition System NBS Spec Download

    Unlock Download
    09. FirePro Ei90 Single Glazed Door System NBS Spec Download

    09. FirePro Ei90 Single Glazed Door System NBS Spec Download

    Unlock Download
    10. FirePro Ei120 Single Glazed Partition System NBS Spec Download

    10. FirePro Ei120 Single Glazed Partition System NBS Spec Download

    Unlock Download

    Unlock This Download

    We just need a few details before you can download. It’s free and only takes a moment.

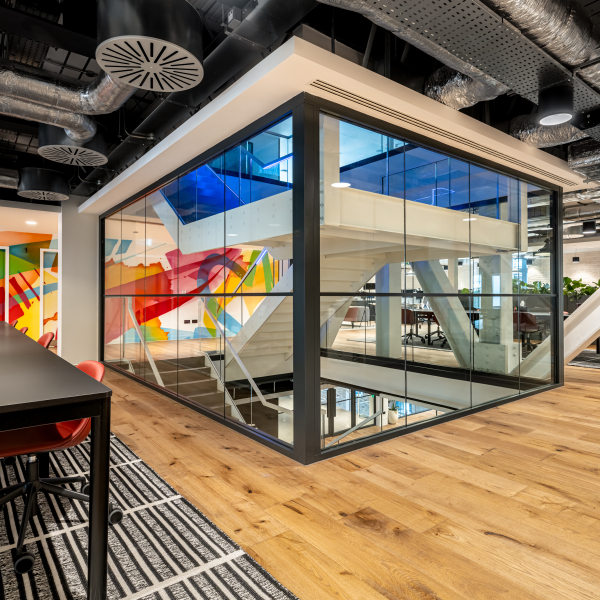

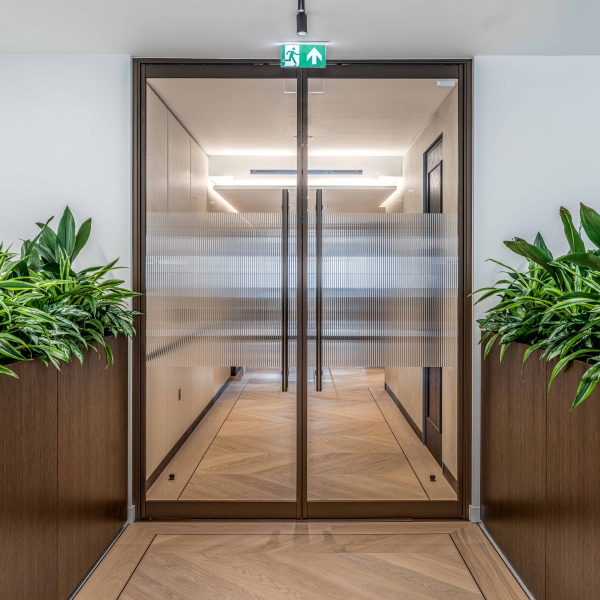

    FirePro E - Integrity Only

    The FirePro integrity only system delivers exceptional fire- rated performance for screens (E120*) and doors (E90*), giving architects the freedom to create striking, refined interiors while ensuring complete fire integrity.

    Fully tested in-house and Certifire certified, it provides total confidence in a compliant, considered solution without relying on third-party test data.


    With concealed deflection heads, underfloor barrier fire separation, fully tested ironmongery on both fire and protected sides, and optional pre-fabricated concealed electric locks, FirePro integrity only combines aesthetic precision with trusted fire protection, offering designers both elegance and reassurance in every project.

    FirePro E - Integrity Only
    FirePro E - Integrity Only
    01. FirePro E30-E90 Single Glazed Partition System NBS Spec Download

    01. FirePro E30-E90 Single Glazed Partition System NBS Spec Download

    Unlock Download
    02. FirePro E30-E90 Double Glazed Partition System NBS Spec Download

    02. FirePro E30-E90 Double Glazed Partition System NBS Spec Download

    Unlock Download
    03. FirePro E30-E60 Single Glazed Door System NBS Spec Download

    03. FirePro E30-E60 Single Glazed Door System NBS Spec Download

    Unlock Download

    Unlock This Download

    We just need a few details before you can download. It’s free and only takes a moment.

    Download FirePro EPDs

    We’re pleased to announce the publication of a new series of Environmental Product Declarations (EPDs) for our FirePro fire-rated glazing systems, covering both single-glazed fire-rated partitions and glazed door systems across a range of fire performance ratings.

    The new FirePro EPDs have been developed in accordance with recognised international standards, including ISO 14025 and EN 15804+A2, which establish the framework for producing verified environmental declarations for construction products. These standards ensure environmental data is generated using consistent methodologies and independently verified, helping provide reliable information for specifiers and project teams.

    Access FirePro Environmental Product Declarations




    Contact our Pre-Construction Design Department today for any technical support you require for your commercial fit-out project.

    Tel: 020 7952 4830

    Email: pre-con.design@radiipartitioning.com

    Or get in touch via our website contact form.



    Discover More:

    R12806 MSL FR01 002

    Entrance Lobby

    R12806 MSL SD01 001

    Meeting Room One

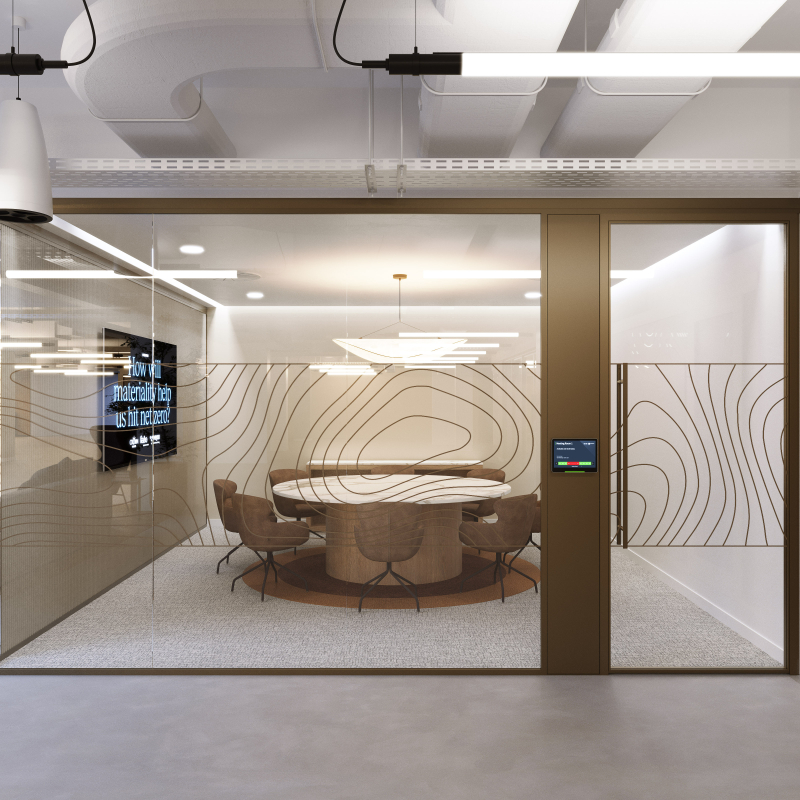

    R12806 MSL SD02 & SD03 001

    Meeting Room Two

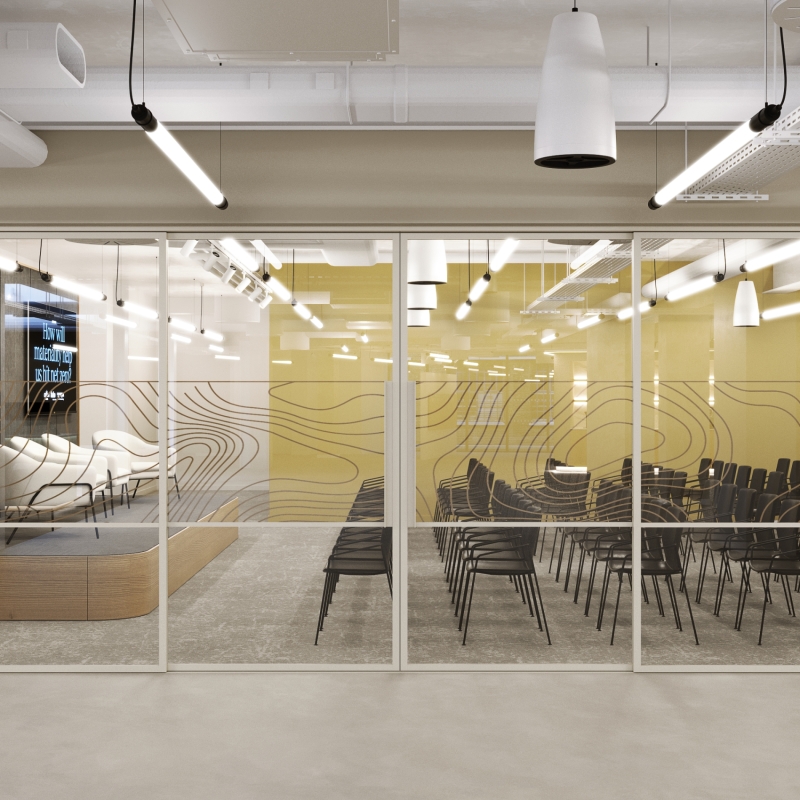

    R12806 MSL SD06 001
