Specialist glass fire rated screens and doors that offer both integrity and insulation protection and are certified to recognised British and European standards.
Our FireEco range combines certified fire rated glazing with solid hardwood timber framing, giving specifiers a timber alternative to metal framed fire rated systems.
Rated up to Ei60 (integrity and insulation), FireEco's hardwood screens and integrated door system come in natural and painted wood finish options, with integral blinds available.
Explore our complete range of fire rated glazing systems to find the right solution for your space.

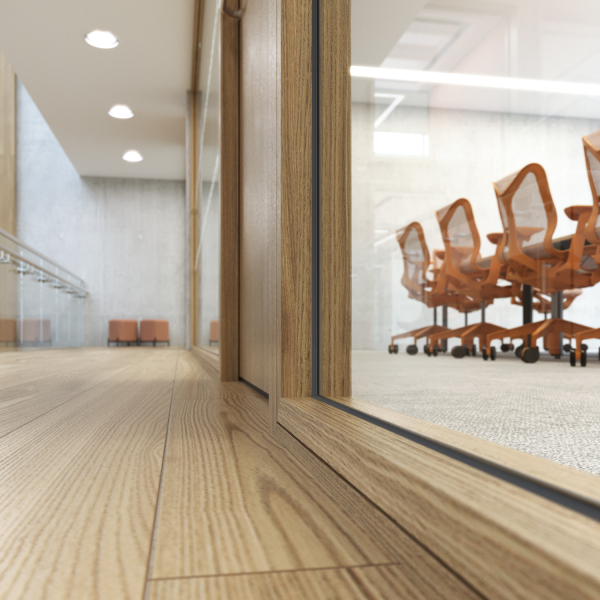

FireEco pairs solid hardwood timber framing with certified fire protection, achieving up to Ei60 for screens and up to FD60 for doors. Screens are available in single or double glazed formats, letting architects balance transparency, fire performance and acoustic control.

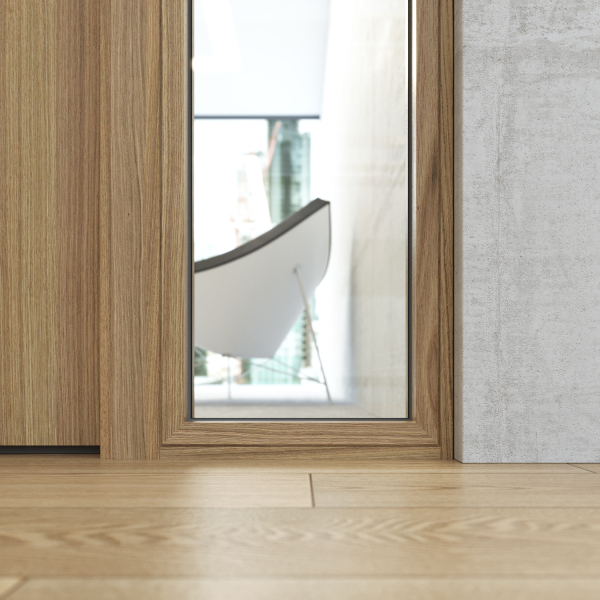

The hardwood frame can be finished in a natural wood grain or painted to match an interior scheme. Integrated blinds can be specified where privacy is needed without losing light.

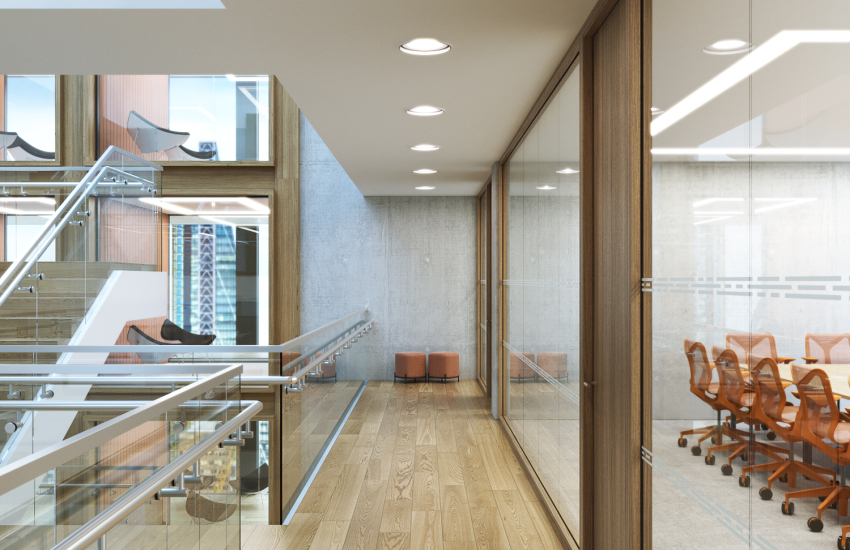

Tested for both integrity and insulation, FireEco offers a timber framed alternative to metal framed fire rated glazing, with a tactile finish that suits reception areas, meeting rooms and client facing spaces.
Is an EPD available for FireEco?
Not currently. Published Environmental Product Declarations cover our FirePro range of fire rated screens and doors. For embodied carbon data on FireEco, contact the specification team.
From E30 to Ei120, our suite of glazed fire systems is tested and certified to recognised British and European standards, combining certified fire protection with the visual quality expected in commercial interiors.
Require further information or testing data?
Please contact us via our online contact form, Technical Enquiry button below, or via info@radiiplanetgroup.com to be put in touch with our technical team.
An integrity-only (E) rating means a solution prevents the passage of fire, but not the passage of heat. An integrity and insulation (EI) rating not only prevents the passage of flames and hot gases, but also limits heat transfer from one side to the other. For more detail, see our guide to understanding E and EI ratings.
Our fire-rated systems include E and EI ratings for doors up to 60 minutes (E60 / EI60), and fire-rated screens up to 120 minutes (E120 / EI120). Fire ratings vary depending on the system type and frame material, as well as the protection direction required (mono- or bi-directional).
Yes. Fire-rated glazed screens and doors can also provide acoustic performance, although the acoustic rating of fire doors is typically a secondary requirement alongside their primary fire-resistance function.
Yes, the FireClear range is tested to UK standards only, and the FirePro range is tested to European standards.
Fire-rated glazing is typically much thicker than standard glazing, so achieving an exact visual match can be challenging. However, low-iron glass options are available for most fire ratings, helping to minimise the difference between fire-rated and non-fire-rated partitions. Contact the Radii Planet Group team to discuss the most suitable options for your project.
Following installation, BRE installation certification and fire certification are supplied within the O&M manual to demonstrate compliance.
Yes. We have published Environmental Product Declarations (EPDs) for our FirePro range of fire-rated screens and doors, covering both E and Ei ratings.
Our teams deliver glazed partitions, fire-rated and architectural glazing across the UK. We provide UK-wide delivery and installation of glazed partitions, ISO door systems and fire-rated solutions, supported by regional project managers and accredited installers. Every project benefits from coordinated design, detailed drawings and quality-assured manufacture, aligned to UK regulations and your project milestones.
Choose your area below or explore local case studies and connect with our team today.

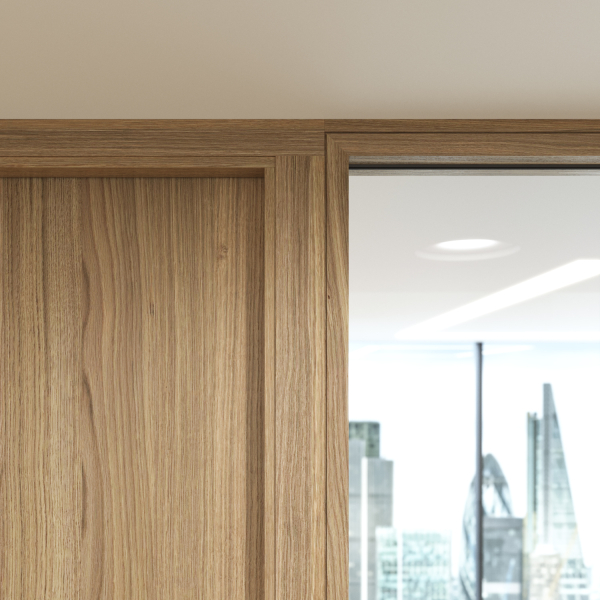

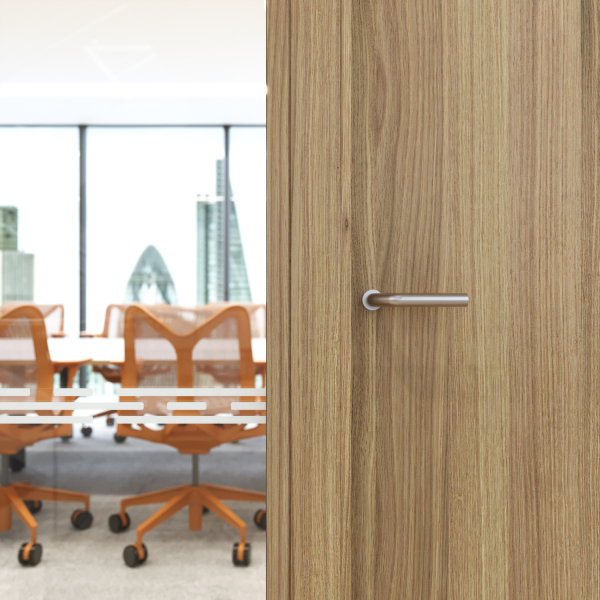

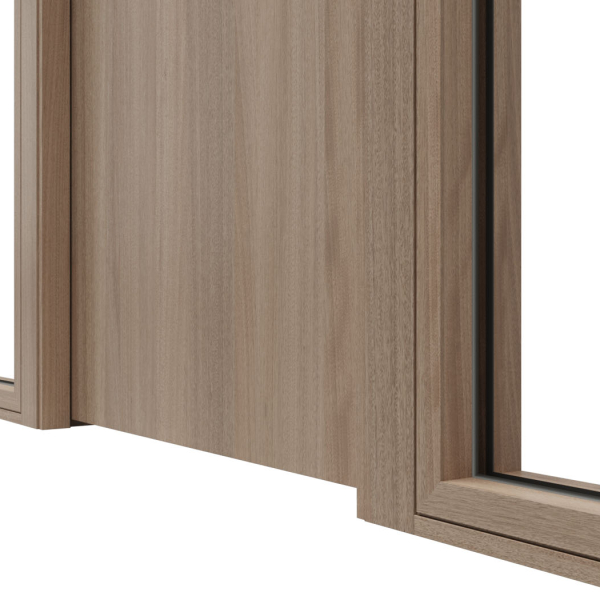

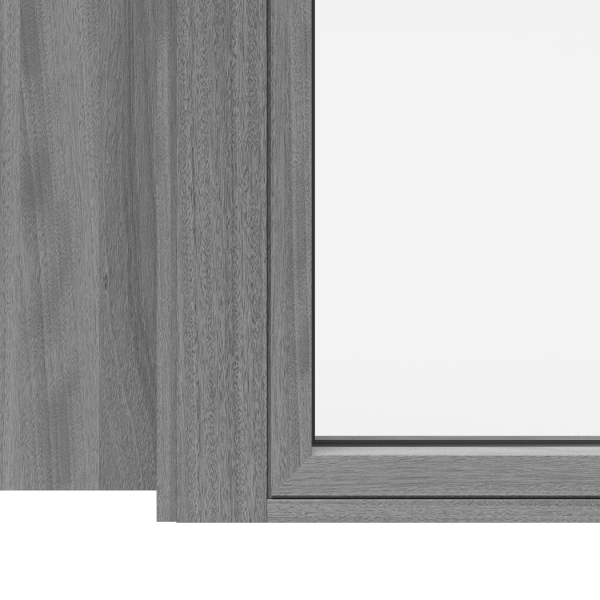

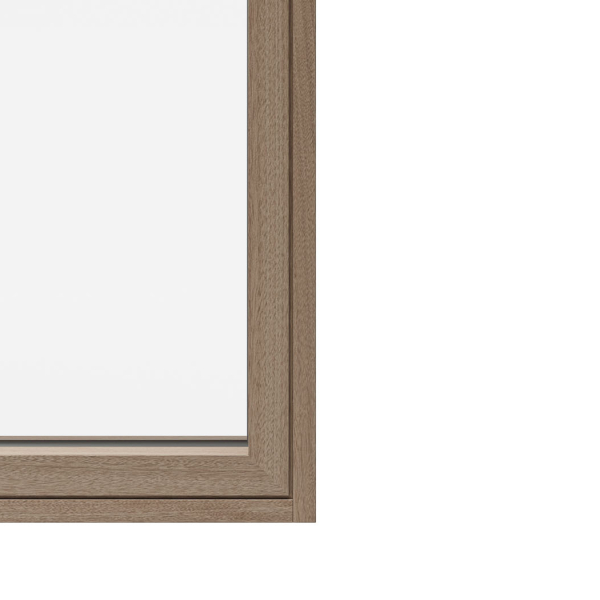

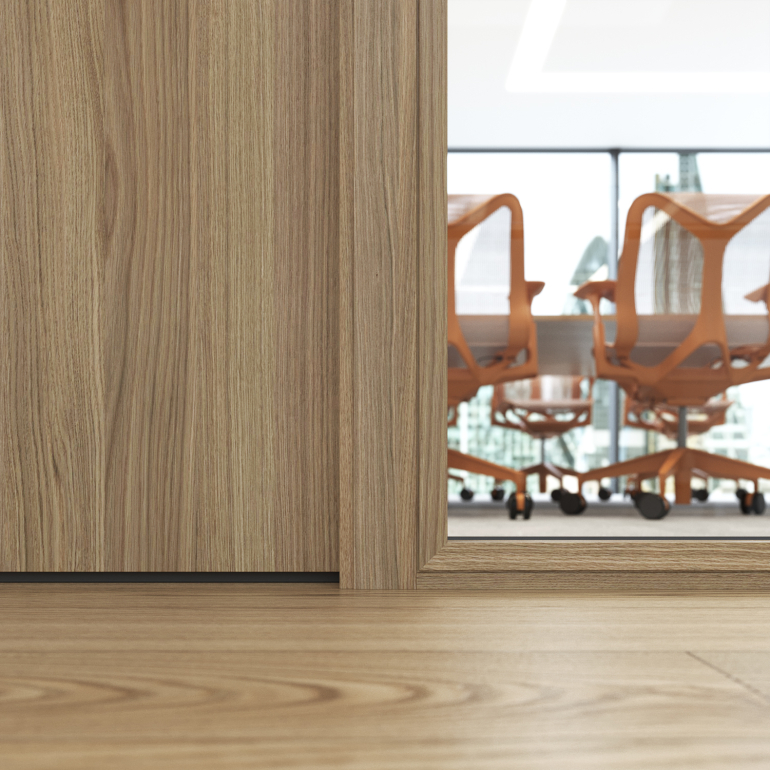

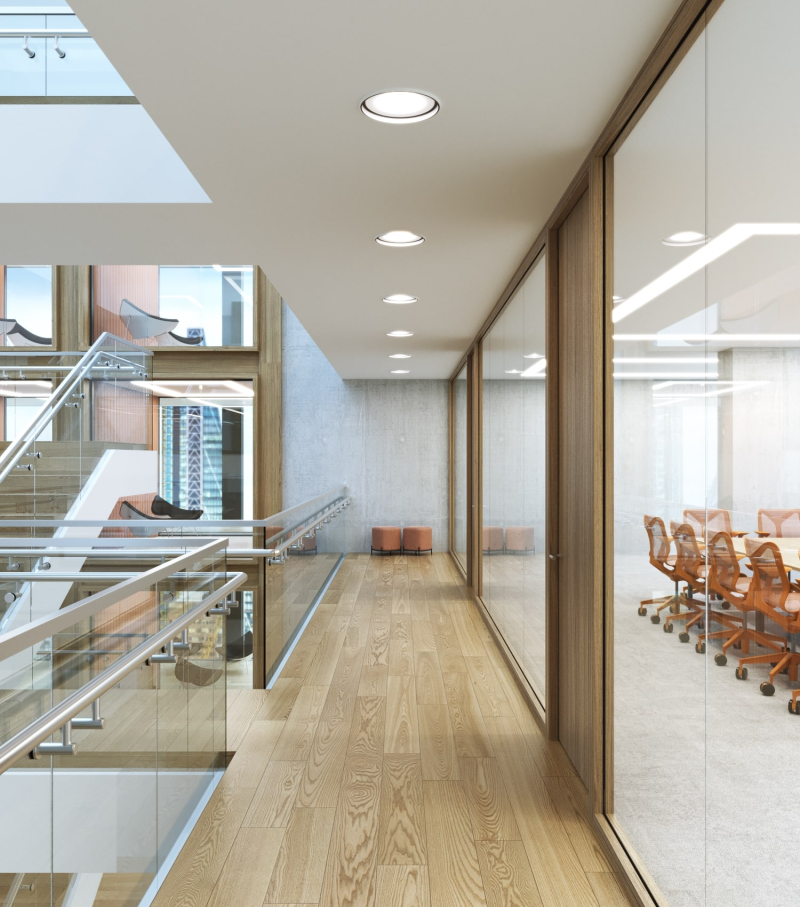

FireEco combines the natural warmth and character of high-quality hardwood timber with the assurance of certified fire protection, achieving up to EI60 for screens and up to FD60 for doors. Screens are available in single or double-glazed formats, giving architects the flexibility to balance transparency, performance, and acoustic control.
Crafted from premium hardwood, FireEco can be finished in a natural wood grain to highlight its organic beauty or painted to match any interior scheme. Integrated blinds can also be incorporated for privacy without compromising light.
Fully tested for both integrity and insulation, FireEco offers a refined, tactile alternative to metal-framed fire- rated glazing — bringing a softer, more natural finish to high-performance fire protection.
Technical Enquiry | SCREEN FIRE RATING | EI30 - EI60 |
 | SCREEN ACOUSTICS | up to Rw 50 dB (DG), Rw 39 dB (SG) |
 | SCREEN MAX HEIGHT | up to 3000mm |
 | SCREEN GLAZING CONFIGURATION | Butt jointed only |
 | SCREEN GLAZING OPTIONS | Single and double glazed |
 | SCREEN FRAME MATERIAL | Solid hardwood timber |
 | SCREEN FINISHES | Primed/Two coat finish, lacquered |
 | SCREEN FIRE PROTECTION DIRECTION | Mono-directional |
 | SCREEN AMBIENT TEMPERATURE SMOKE RATING | Yes |
 | SCREEN UNDERFLOOR FIRE SEPARATION COMPATIBILITY. | N/A |
 | DOOR FIRE RATING | FD30 - FD60 |
 | DOOR ACOUSTICS | Not tested |
 | DOOR MAX HEIGHT | up to 3000mm |
 | DOOR MOVEMENT TYPE | Swing |
 | DOOR SWING | Single action |
 | DOOR LEAF OPTIONS | Single, 1.5, double |

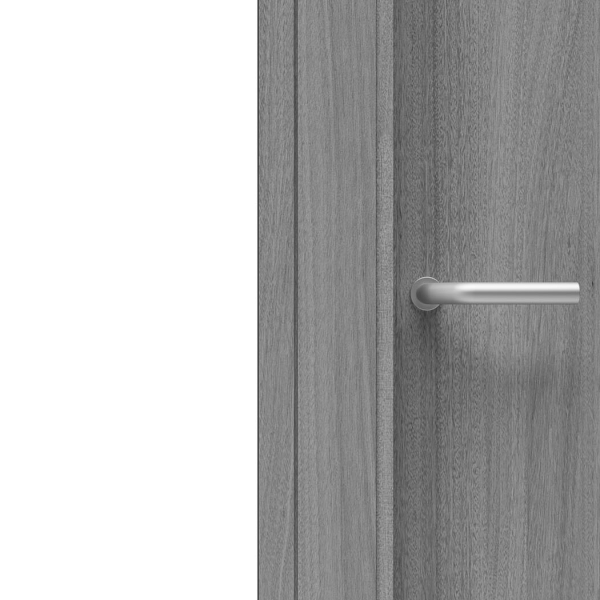

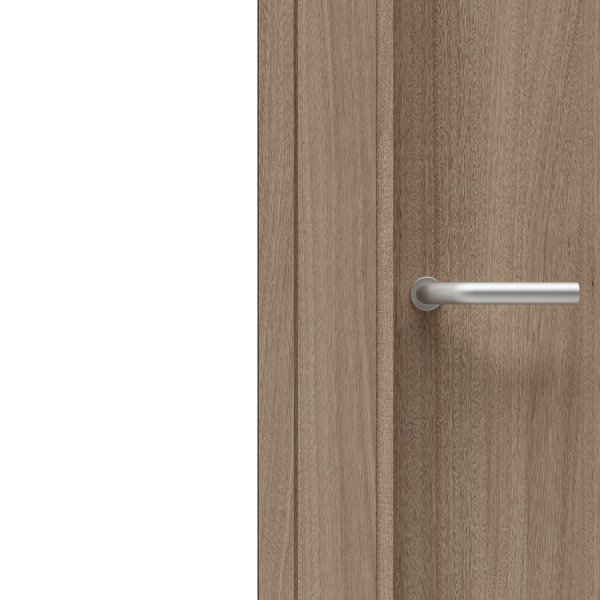

 | DOOR IRONMONGERY OPTIONS | Pull and lever handles |
 | DOOR OVERPANEL OPTIONS | Rectangular |
 | DOOR SMOKE RATING | Yes |
 | DOOR UNDERFLOOR SUPPORT. | N/A |
FireEco EI Screens & FD Doors - Radii Planet Group Data Sheet
Timber Framed Fire Rated System
Unlock DownloadRequest Fire Test Information
Contact our Centre of Excellence for specific fire testing data.
