Parallel 50

50mm | Up to Rw 45 dB

View Details

Parallel 84

+ -

Parallel 84

84mm | Up to Rw 45 dB

View Details

Parallel 100

+ -

Parallel 100

100mm | Up to Rw 50 dB

View Details

Parallel 125

+ -

Parallel 125

125mm | Up to Rw 55 dB

View Details

Parallel 100.

Fire Rating
Non Fire Rated

Acoustics
Up to Rw 50 dB

Maximum Height
up to 3650mm

Parallel 100 is a high-performing acoustic (Rw 50 dB) commercial glazed partition system, perfect for executive boardrooms and meeting rooms that require additional acoustic privacy.

KEY FEATURES & OPTIONS.

1. Available in a range of framework finishes - with any RAL colour achievable through custom powder coating.
2. Uses two 12.8 mm acoustic laminated glass.
3. Available with our popular 'Rio' feature banding.
4. Recessed and surface mounted deflection heads available up to +/- 40 mm.
5. Environmental Product Declaration (EPD) available on request.

Available in a range of framework finishes - with any RAL colour achievable through custom powder coating.

Uses two 12.8 mm acoustic laminated glass.

Available with our popular 'Rio' feature banding.

Recessed and surface mounted deflection heads available up to +/- 40 mm.

Environmental Product Declaration (EPD) available on request.

01.

Technical Information

RANGE	Parallel
FRAMEWORK FOOTPRINT	100mm
ACOUSTIC PERFORMANCE	Up to Rw 50 dB
CONFIGURATION OPTIONS	Double Glazed
FIRE PERFORMANCE	Non Fire Rated
GLAZING OPTIONS	2 x 12.8mm Acoustic Laminate Glass
HEAD DETAIL	Surface Mounted or Recessed Deflection
ABUTMENT DETAIL	Fully integrated single glazed drywall endcaps suitable for 100mm & 122mm drylined walls
DEFLECTION	0, ±15 mm, ±25 mm, ±40 mm
BASE DETAIL	25mm to 75mm
ENVIRONMENTAL PERFORMANCE	Has a Published Environmental Product Declaration (EPD)
MAXIMUM HEIGHT	Up to 3000mm as standard Extended height options up to 3650mm
FINISHING OPTIONS	Powder coated (any RAL or BS colour); anodised; simulated satin stainless steel finished; sublimation veneer finish on aluminium
COMPATIBLE WITH	Glide Pocket Sliding Doors, Hogan, Timber & Align

Downloads

Parallel 100 (DG) Glazed Partition System - Radii NBS Specification Template

Download File

Radii Environmental Product Declaration (EPD) - DG Partition

Parallel Glazed Partitions

Download File

Parallel - Slimline Double Glazed Partitions

The double glazed Parallel partitioning system is perfect for meeting rooms and executive suites that require higher levels of acoustic privacy, achieving up to Rw 55 dB.

HIGH-END COMMERCIAL DOUBLE GLAZED PARTITIONS

Our Parallel double glazed partitioning system comes in 50mm, 100mm and 125mm variations and is perfect for environments that require higher levels of acoustic performance.

This mullion-free system uses two separate skins of dry joint glass panels, with framing available in single or double glazing.

Parallel 50 achieves 45dB Rw using 2x12.8mm acoustic laminated glass. Slimline and minimalist, it is ideal for environments needing flexibility of design.

Parallel 100 sees a step up in acoustic performance, achieving 50dB Rw while using the same glass as Parallel 50 due to the increased cavity space.

Finally Parallel 125 is capable of achieving a highly impressive 55dB Rw through installation with 2x16.8mm acoustic laminated glass. The 125mm depth sees it fit easily alongside stud walls of varying thicknesses and offers exemplary noise reduction performance.

Parallel partitioning can be manufactured up to 3000mm in height or extended to 3650mm through the use of transom bars, while glazing can be produced as toughened, laminated or with decorative elements based on requirements.

Commonly installed using deflection heads of +/- 15-40mm, our double-glazed systems can be installed alongside various sliding and pivoting doors from our extensive range.

ADD TO YOUR NBS SPECIFICATION

All of our products are available on the NBS Source platform.

Use the links below to add our range of Parallel glazed partitioning systems directly into your specification.

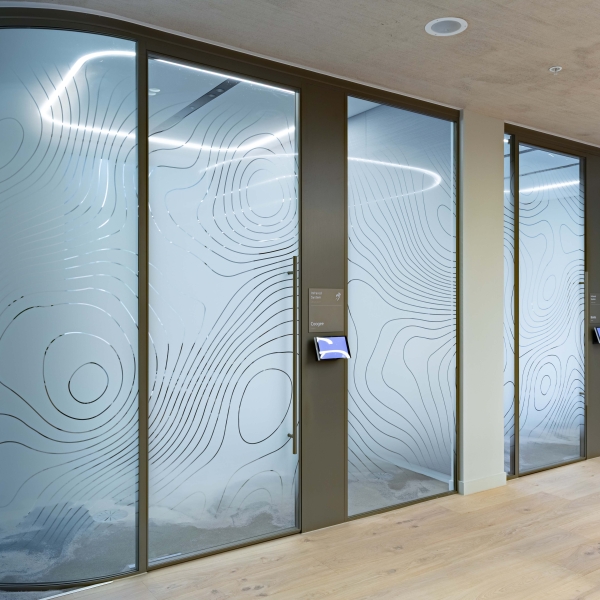

Westpac, 2 Gresham St Level 2, London Radii 2025 ©SAMPHILLIPSPHOTO (LR) (114)

Low Carbon Aluminium.

At Radii Planet Group, we are leading this transformation by transitioning to using Hydro Recycled Low Carbon 2.0 Aluminium for our Radii aluminium framed glass partitions.

Hydro Recycled Low Carbon 2.0 guarantees that for every kilogram of aluminium produced, only up to 2kg of CO2e is emitted—substantially lower than traditional aluminium production.

By utilising recycled content, we not only reduce emissions but also conserve valuable resources, demonstrating how circular economy practices can play a key role in mitigating climate change.
