20mm/1" Single Glazed | Up to 40 dB
Our 20mm wide single glazed partition offers a maximum glazed area, coupled with minimalistic perimeter profiles, for a truly frameless look.
|
|
ACOUSTICS | up to Rw 40 dB |
|

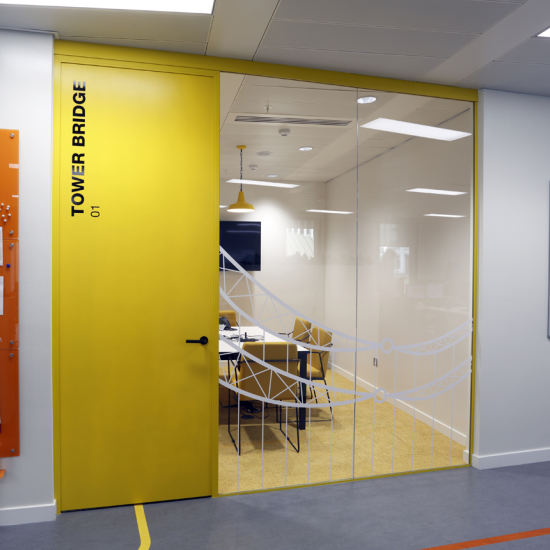

AVAILABLE FINISHES | PPC powder coated, polished, anodised |
|

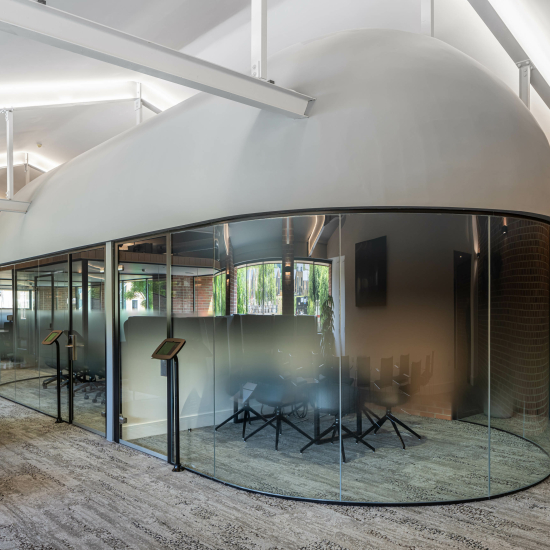

CURVE RADIUS | min. 500mm |
|
DEFLECTION | ±0/15/25/40mm |
|
DOORS | Pivoting, sliding, solid timber, glazed |
|
|
FIRE RATING | Non fire rated |
|

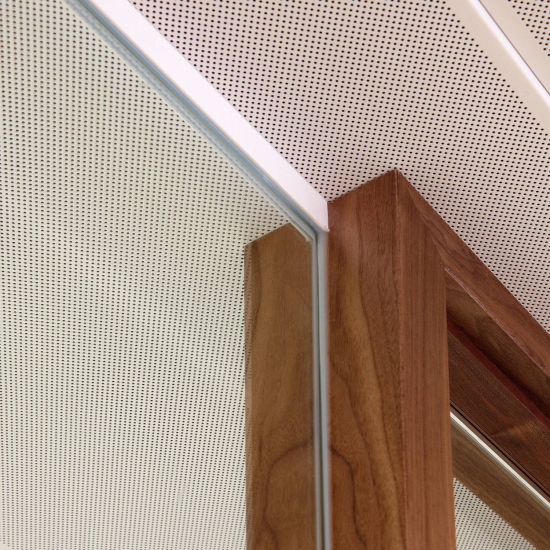

FRAMEWORK | 20mm(w) x 27mm(h) |
|
GLASS JOINT TYPE | Clear butt jointed |
|
GLASS THICKNESS | 10mm to 15mm |
|
|
MAX HEIGHT | up to 3000mm |
Planet Environmental Product Declaration (EPD) - SG Partition
Pure 20, Pure 20 XL, Pure 54 (OSG)
Loft 20, Loft 54 (OSG)
Pure 20 (SG) Frameless Glass Partition System - Planet Designer's Guide
Unlock Download
Pure 20 (SG) Frameless Glazed Partition System - Planet NBS Specification Template
Unlock Download
A great company to work with from design to installation with an attentive and personable team throughout the process. Planet were able to meet the challenges of installing high level acoustic glass partitions in a complex Grade II listed building with their PURE20 single glazed system.
Peter Newton
Barton Willmore
